Golf & Sightseeing Carts
Complete cart range for buyers sourcing low-speed passenger vehicles for resorts, campuses, parks and managed shuttle routes.
Passenger Cart Range
Select a series from the sidebar to review only that group of cart configurations, photos and key specifications.
Standard Series
9 configurations | 2-seat, 4-seat, 6-seat, 8-seat, 10-seat | 1200 mm platform
The original sightseeing-cart range covers compact 2-seat carts through 10-seat shuttle layouts for resorts, campuses and park routes.
Best fit: Golf clubs, resorts, parks and managed short-distance routes.
Standard Series
Single-Row 2-Seat configuration with 2360 x 1200 x 1950 mm, 300kg load capacity and 28km/h max speed.
Standard Series

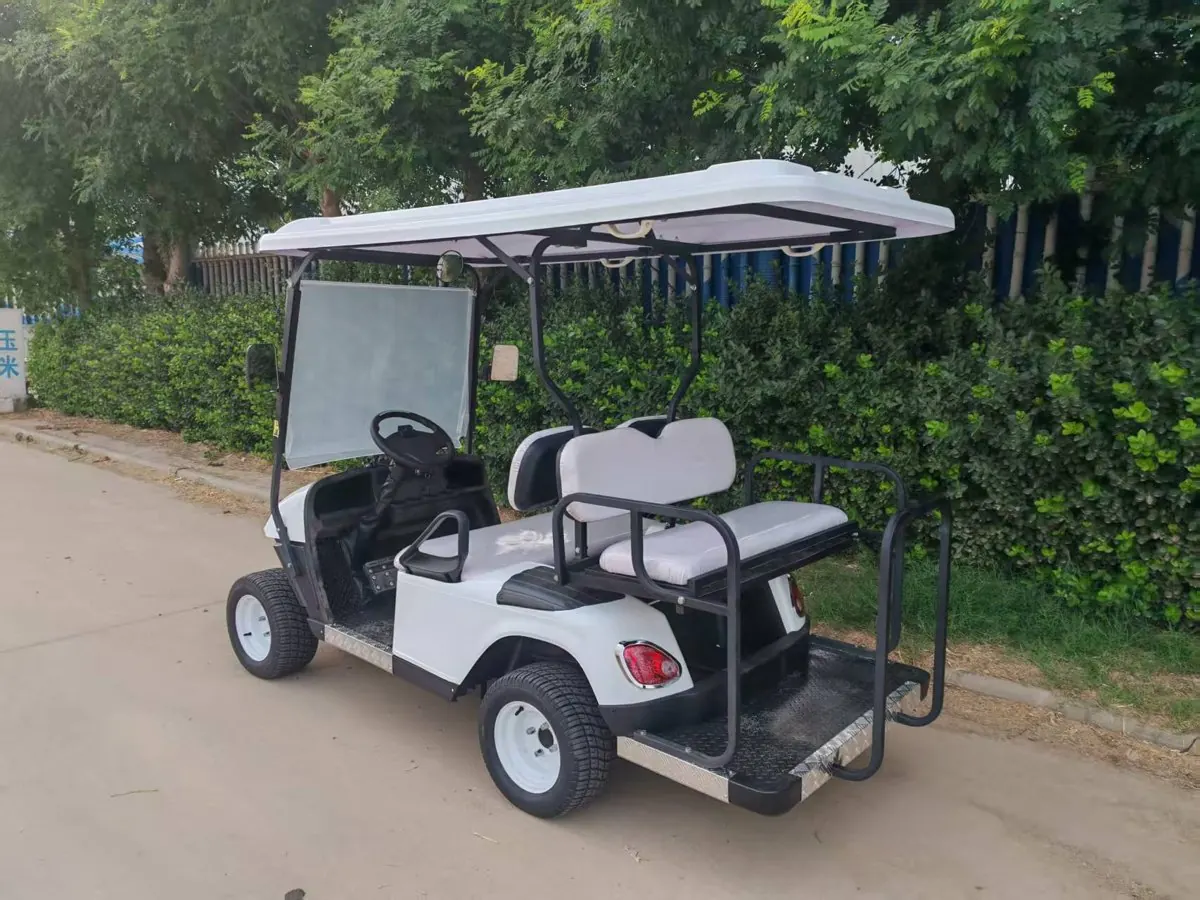

1+1 Row 4-Seat configuration with 2760 x 1200 x 1950 mm, 500kg load capacity and 28km/h max speed.
Standard Series
Two-Row 4-Seat configuration with 3100 x 1200 x 1950 mm, 500kg load capacity and 28km/h max speed.
Standard Series
Three-Row 6-Seat configuration with 3850 x 1200 x 1950 mm, 700kg load capacity and 28km/h max speed.
Standard Series

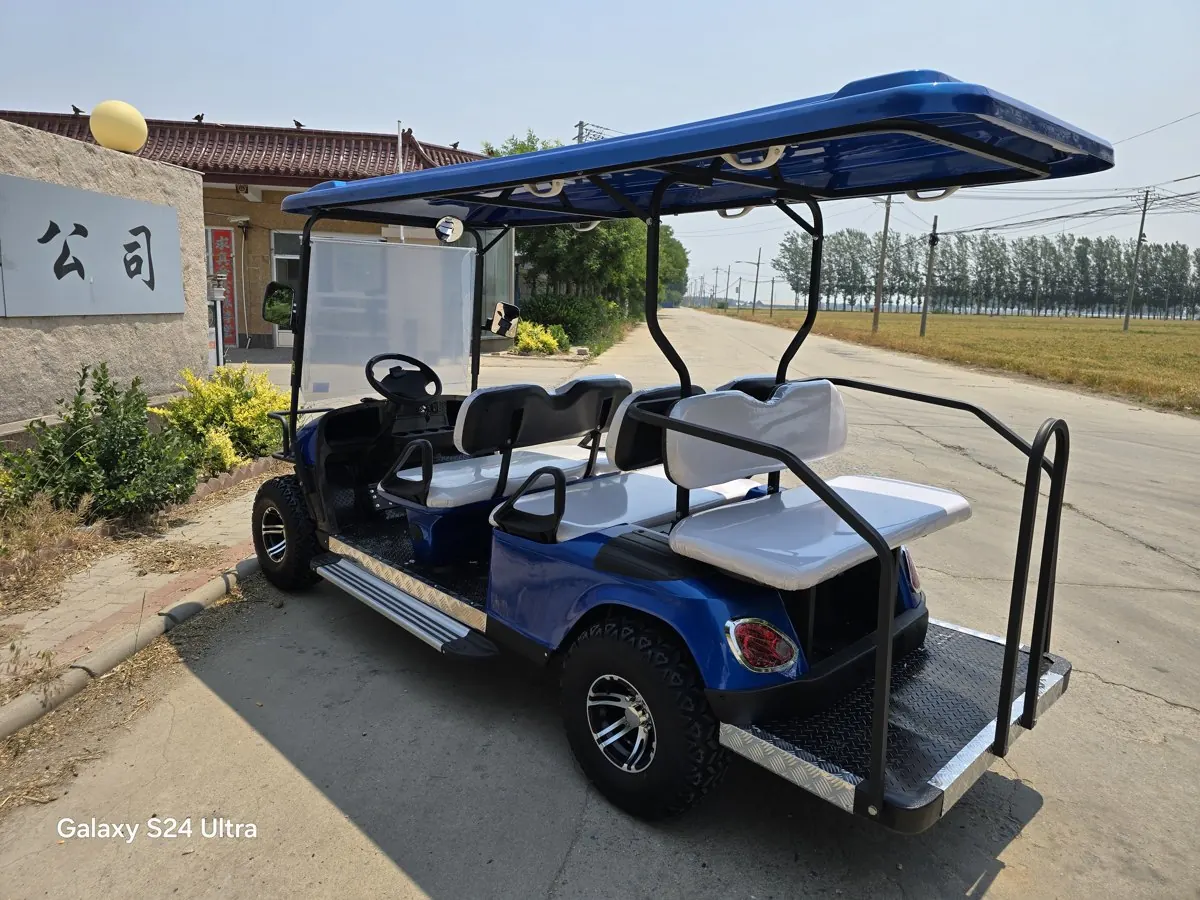

2+1 Row 6-Seat configuration with 3500 x 1200 x 1950 mm, 700kg load capacity and 28km/h max speed.
Standard Series

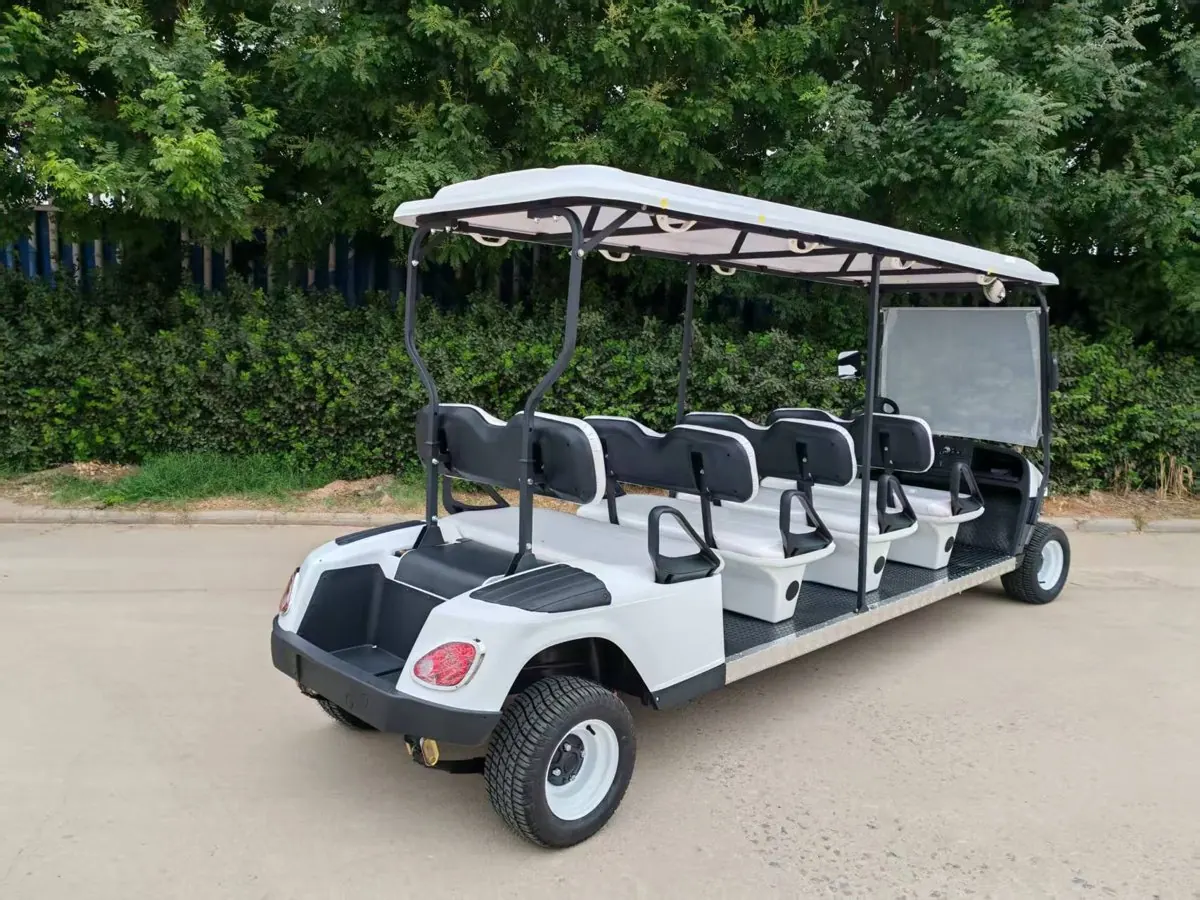

Four-Row 8-Seat configuration with 4480 x 1200 x 1950 mm, 900kg load capacity and 28km/h max speed.
Standard Series

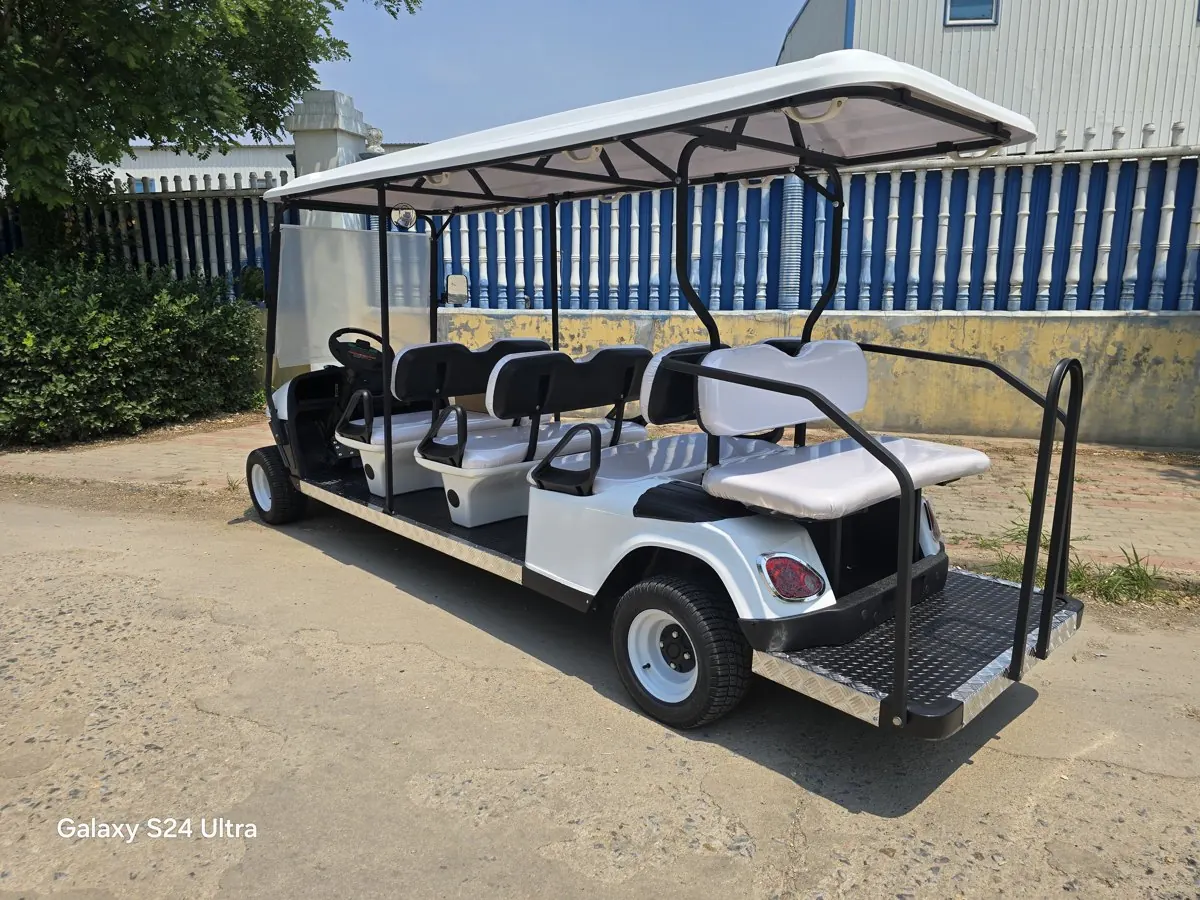

3+1 Row 8-Seat configuration with 4250 x 1200 x 1950 mm, 900kg load capacity and 28km/h max speed.
Standard Series
10-Seat configuration with 5100 x 1200 x 1950 mm, 1000kg load capacity and 28km/h max speed.
Standard Series

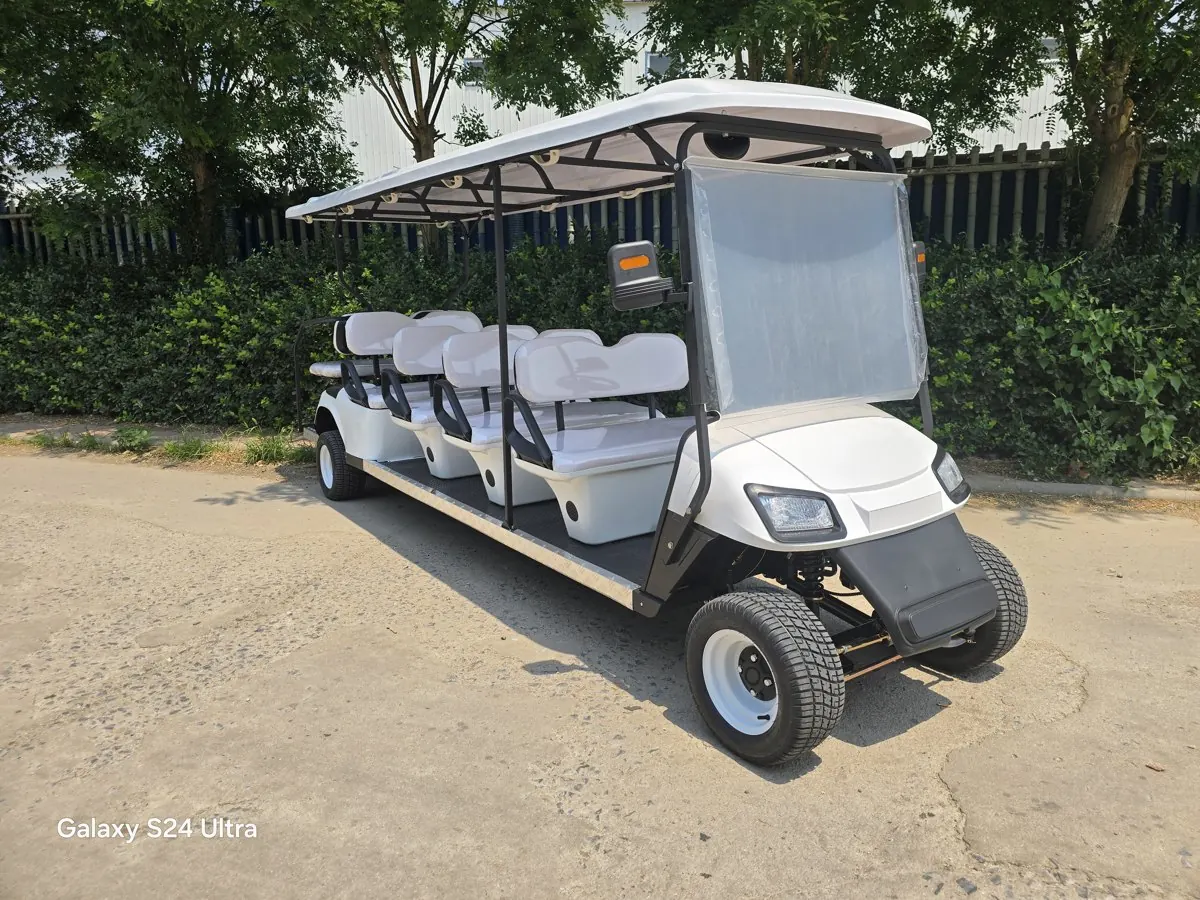

4+1 Row 10-Seat configuration with 4880 x 1200 x 1950 mm, 1000kg load capacity and 28km/h max speed.
B Series
8 configurations | 2-seat, 4-seat, 6-seat, 8-seat, 10-seat, 12-seat | 1380 mm wider body
The B Series adds the wider 1380 mm platform, upgraded instrument display, optional audio and aluminum wheel configurations across 2 to 12 seats.
Best fit: Premium resort transport, reception shuttles and high-capacity sightseeing fleets.

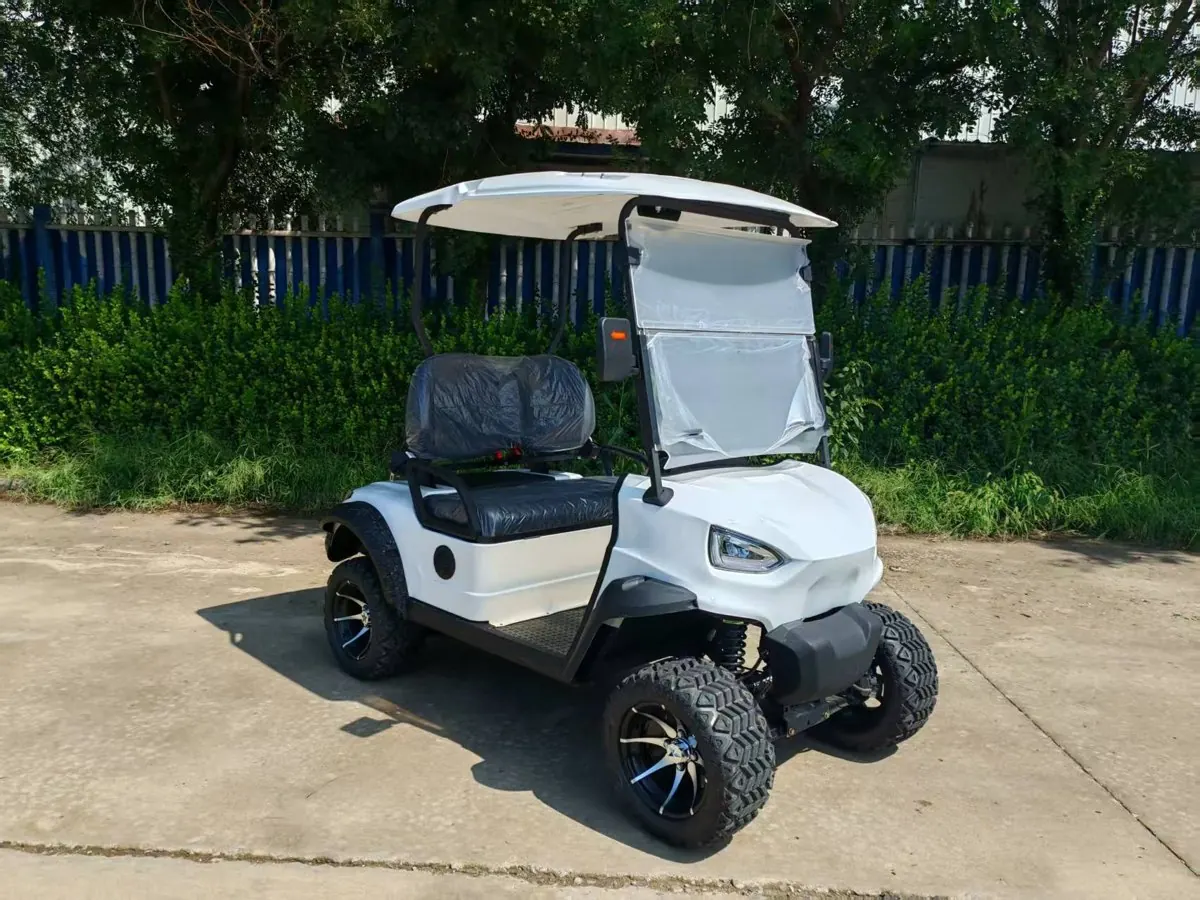

B Series
Single-Row 2-Seat configuration with 2460 x 1380 x 1986 mm, 300kg load capacity and 28km/h max speed.

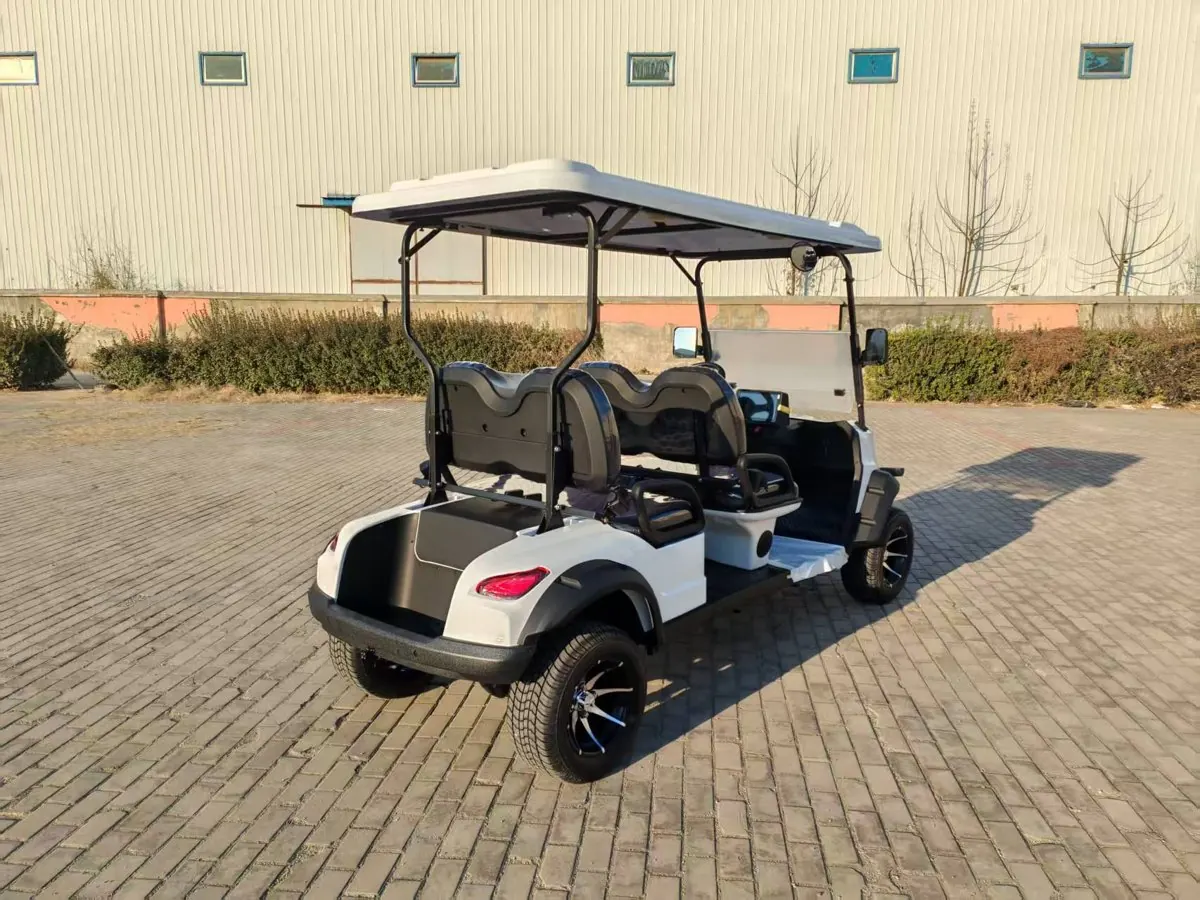

B Series
Two-Row 4-Seat configuration with 3210 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
B Series

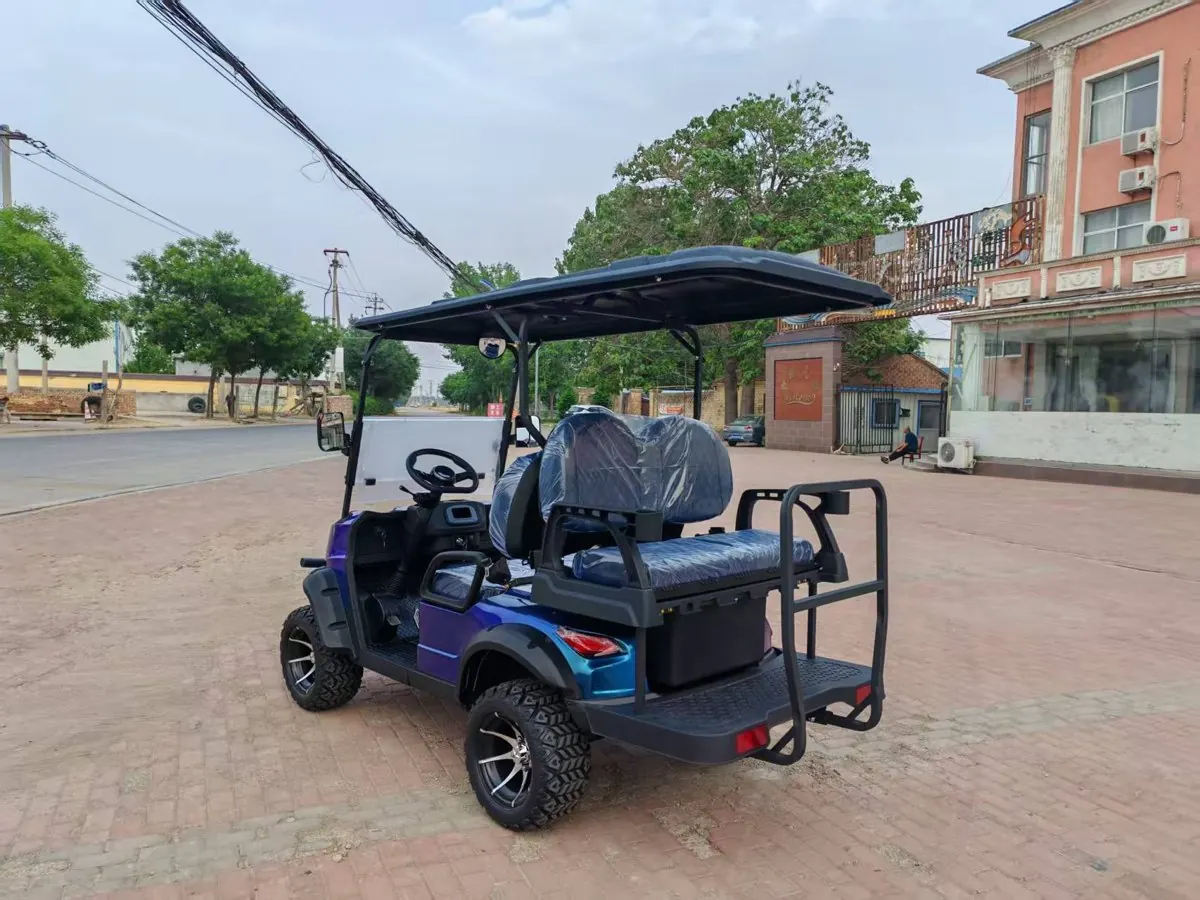

1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
B Series

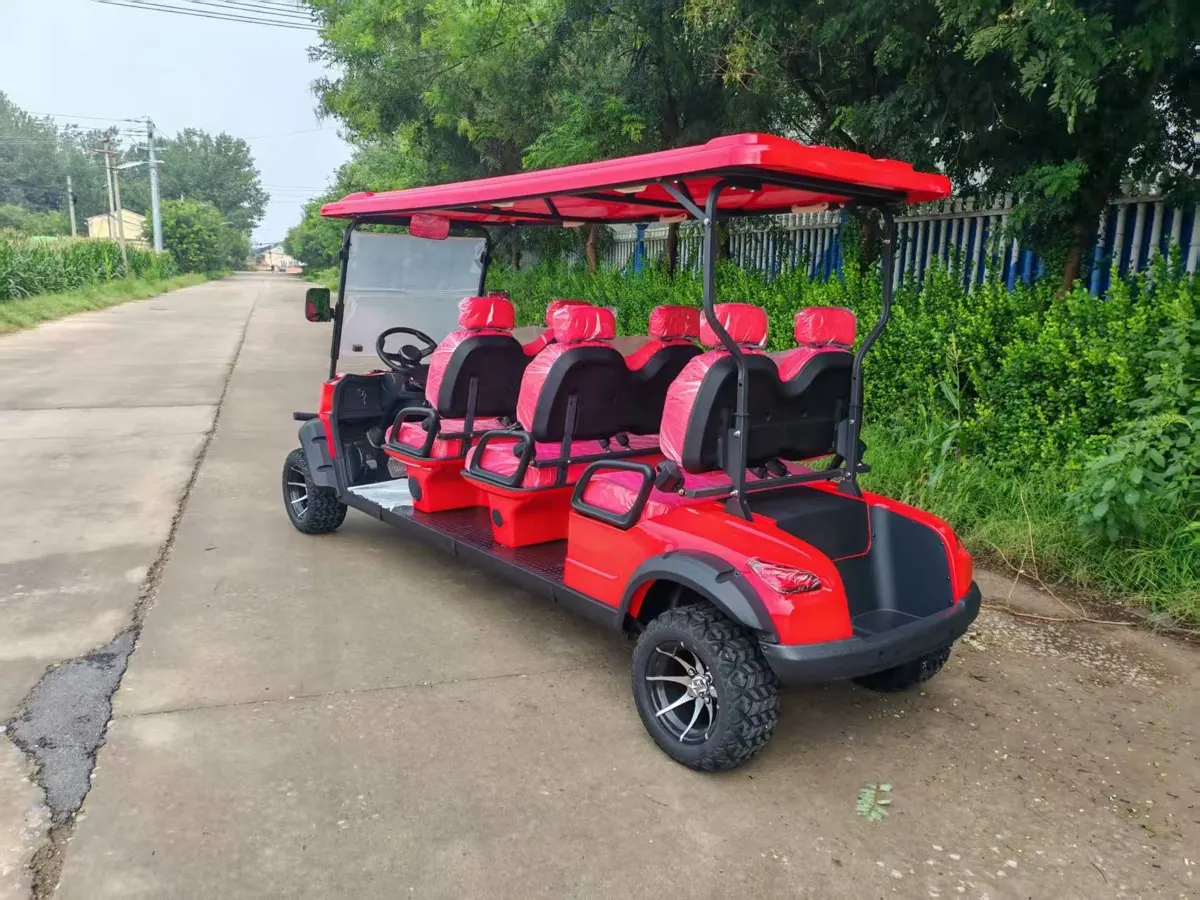

Three-Row 6-Seat configuration with 3960 x 1380 x 1986 mm, 700kg load capacity and 28km/h max speed.
B Series

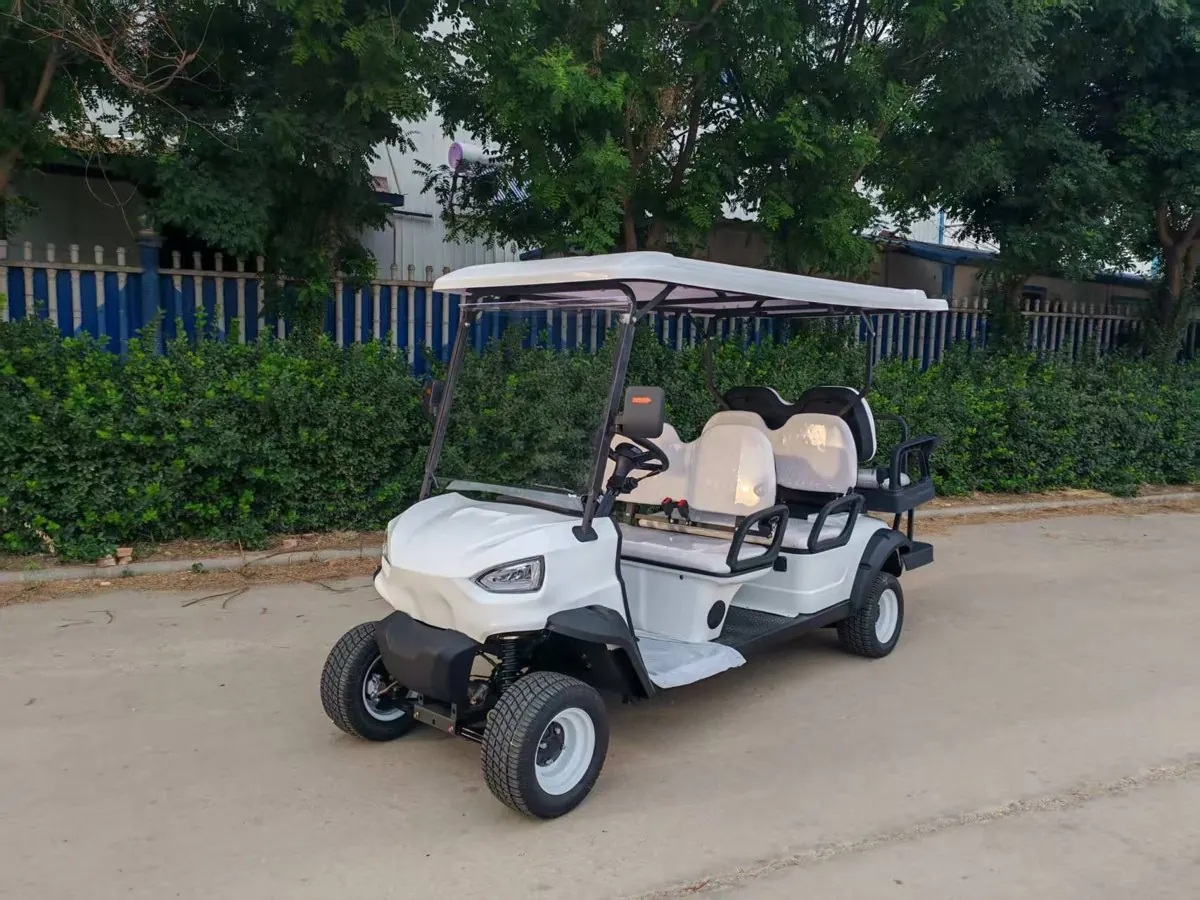

2+1 Row 6-Seat configuration with 3710 x 1380 x 1986 mm, 700kg load capacity and 28km/h max speed.
B Series

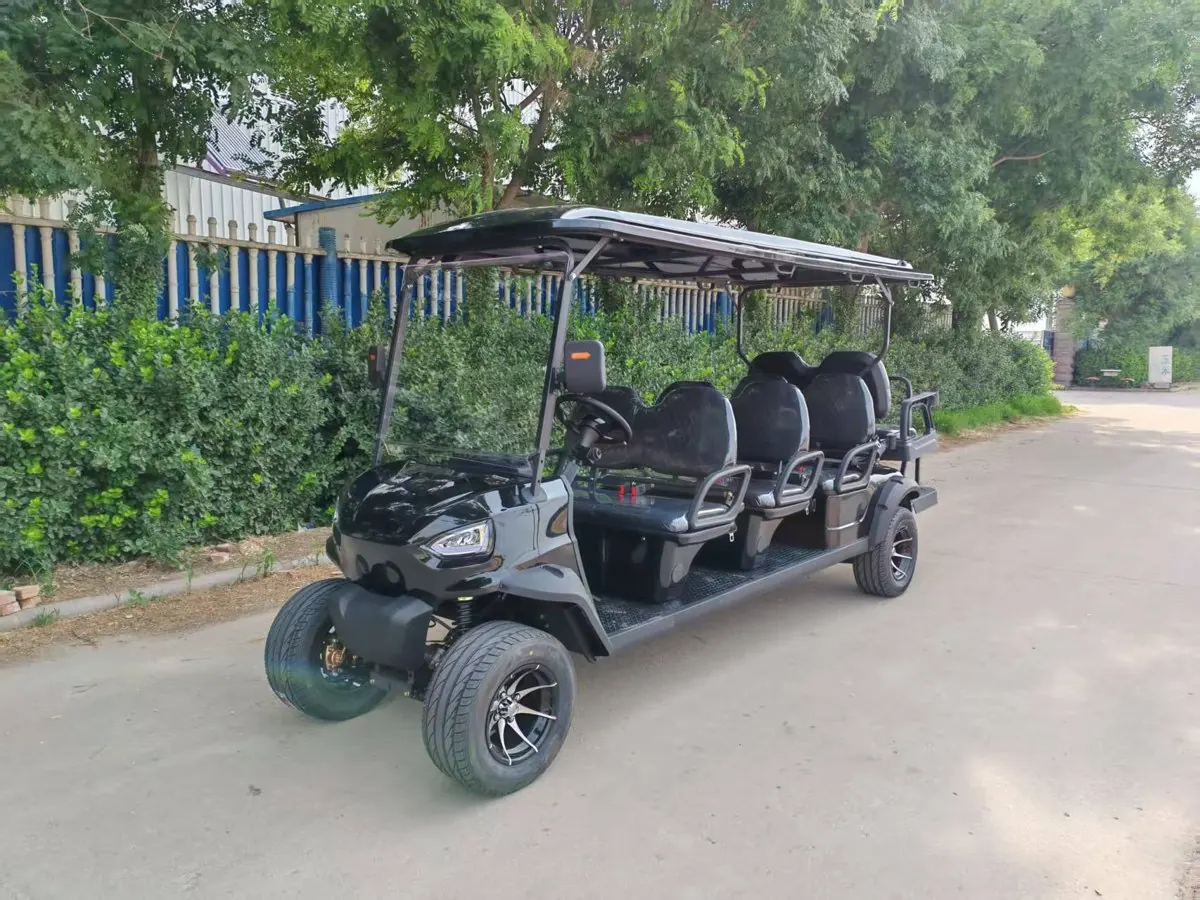

3+1 Row 8-Seat configuration with 4460 x 1380 x 1986 mm, 900kg load capacity and 28km/h max speed.

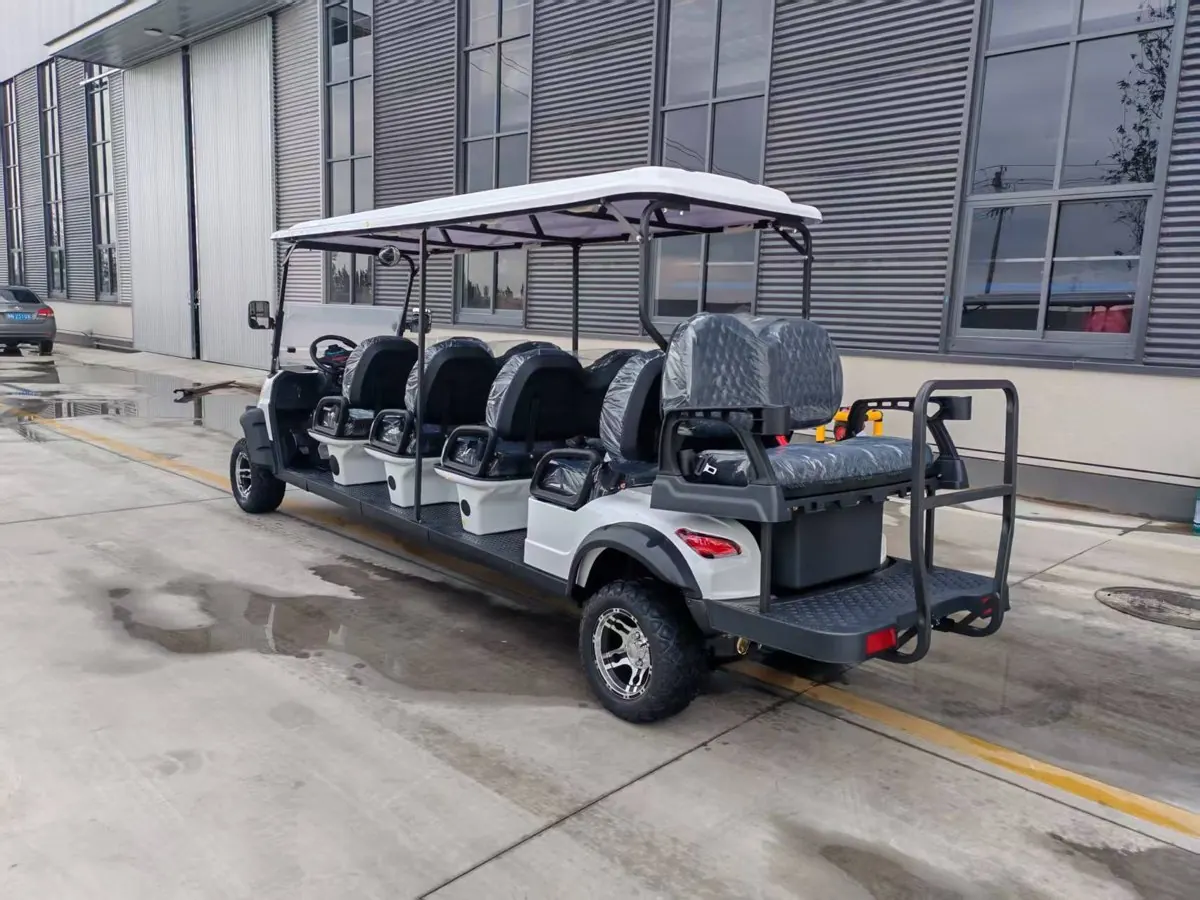

B Series
4+1 Row 10-Seat configuration with 5230 x 1380 x 1986 mm, 1000kg load capacity and 28km/h max speed.
B Series
5+1 Row 12-Seat configuration with 5970 x 1380 x 1986 mm, 1100kg load capacity and 28km/h max speed.
D Series
12 configurations | 2-seat, 4-seat, 6-seat, 8-seat, 10-seat | expanded trim coverage
The D Series gives buyers more visual and trim options around the 2-seat, 4-seat, 6-seat, 8-seat and 10-seat layouts.
Best fit: Dealers that need multiple exterior choices under familiar seating configurations.
D Series

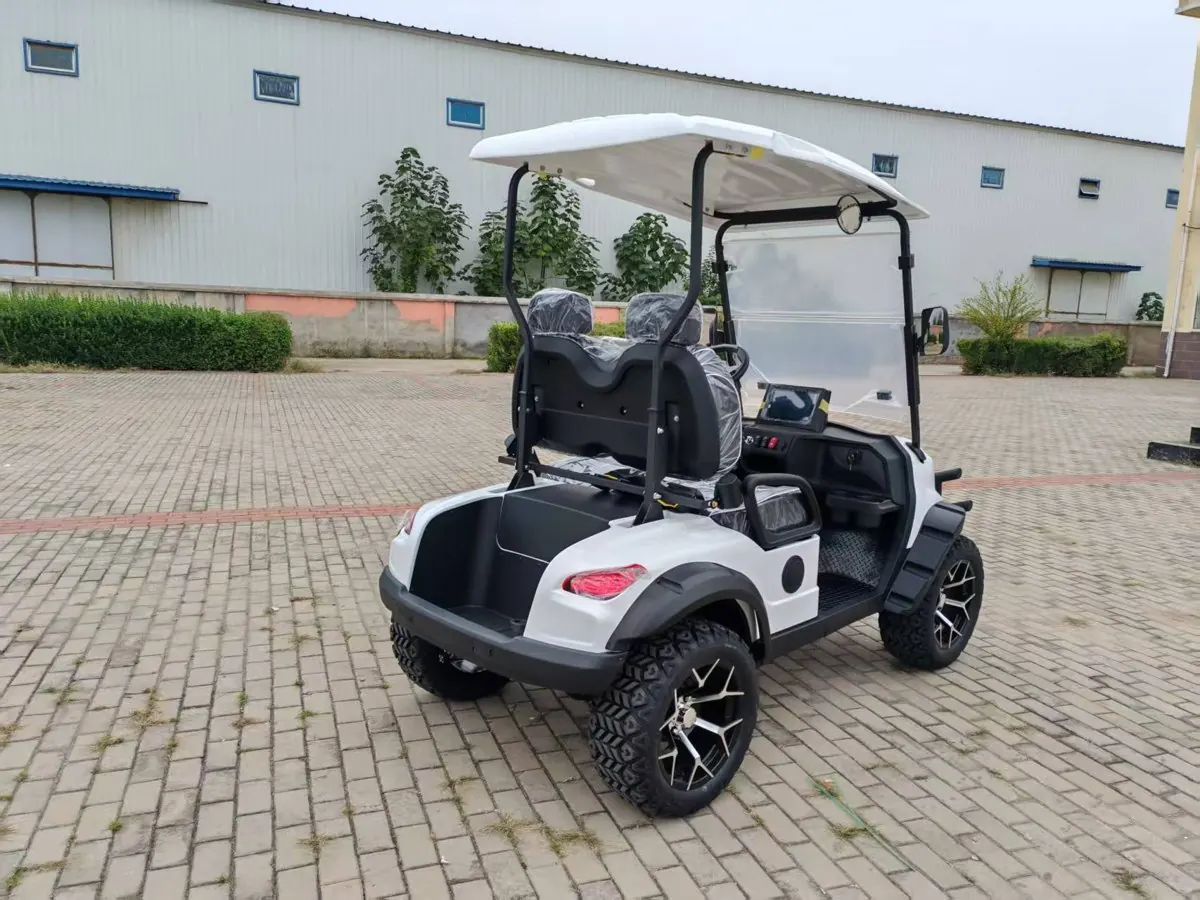

Single-Row 2-Seat configuration with 2460 x 1380 x 1986 mm, 300kg load capacity and 28km/h max speed.
D Series

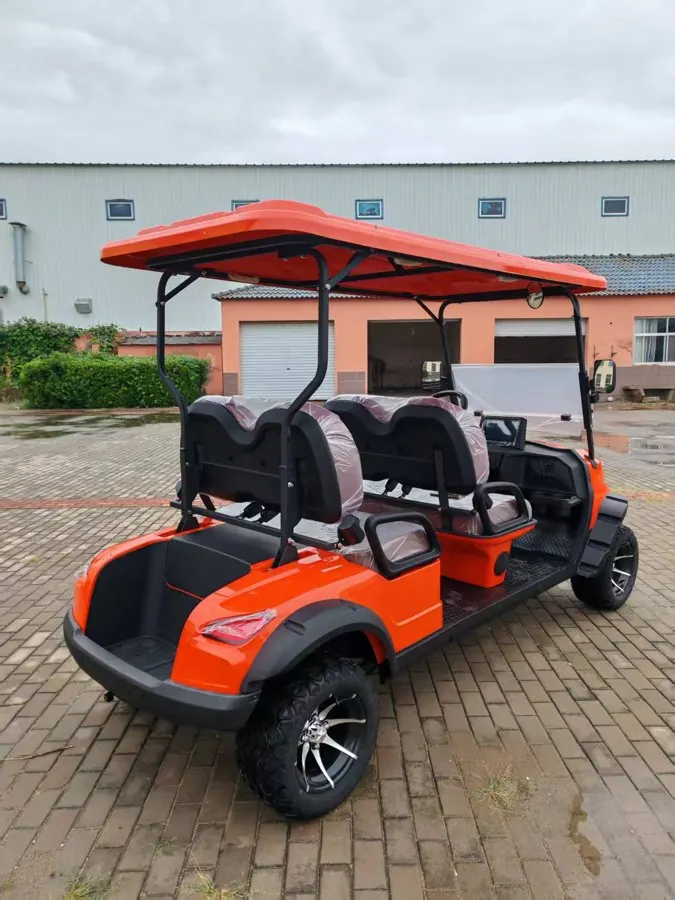

Two-Row 4-Seat configuration with 3210 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
D Series

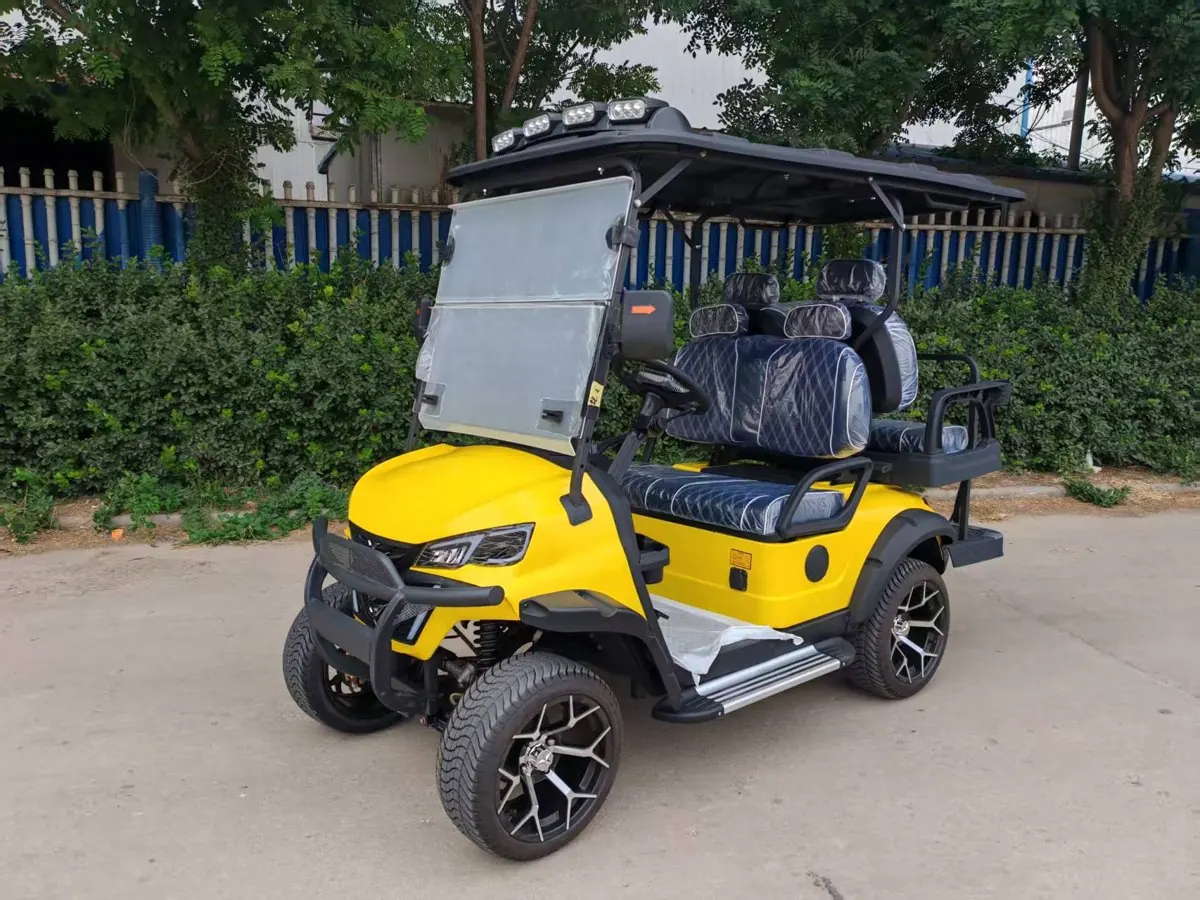

1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
D Series
1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
D Series
1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
D Series
1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
D Series
1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
D Series

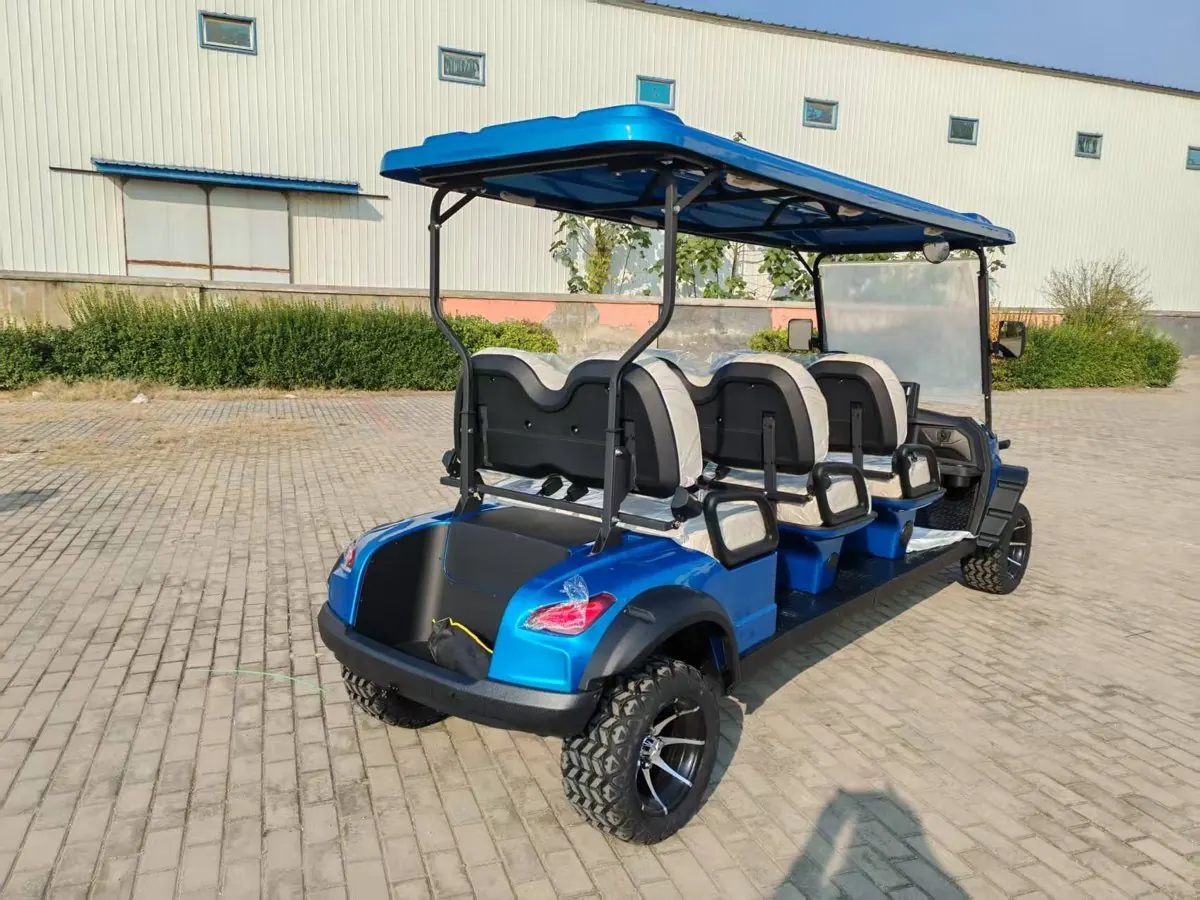

Three-Row 6-Seat configuration with 3960 x 1380 x 1986 mm, 700kg load capacity and 28km/h max speed.
D Series

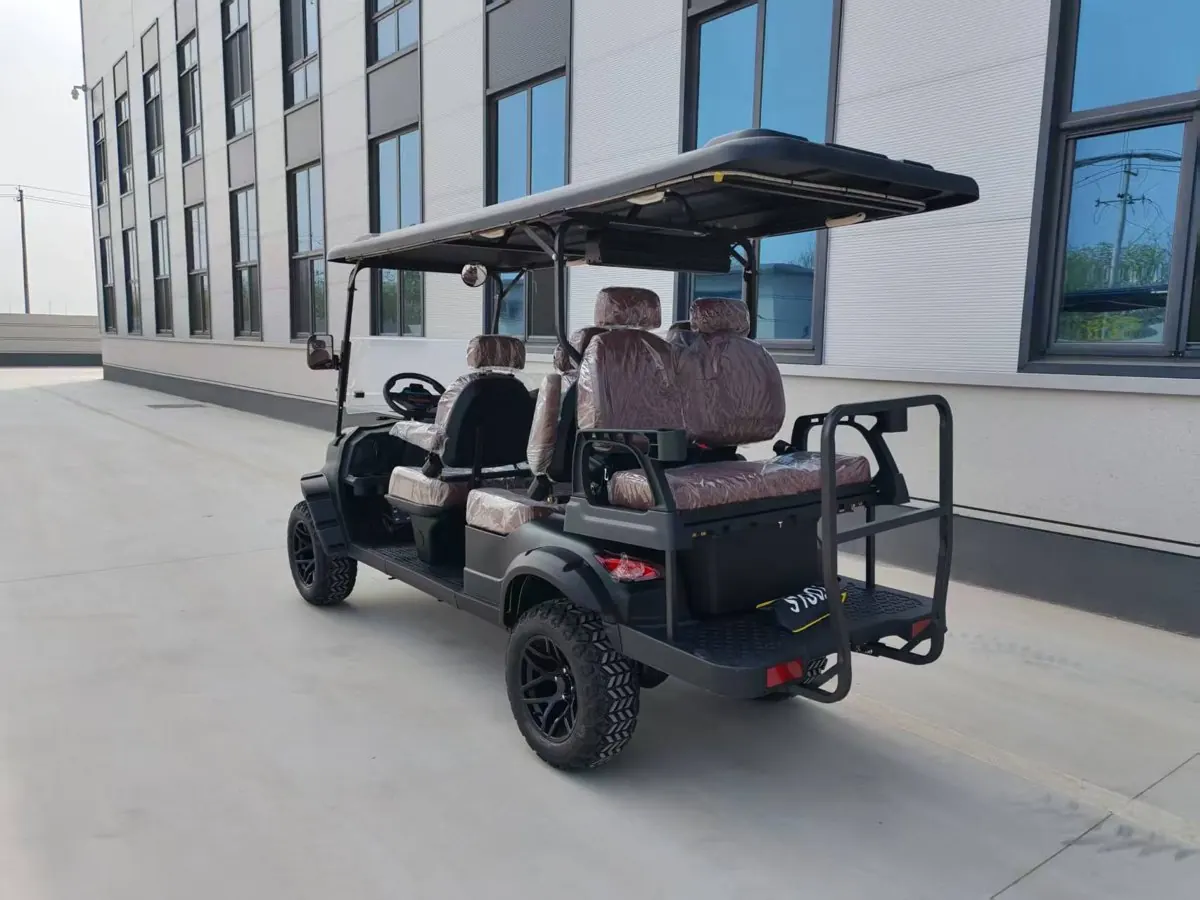

2+1 Row 6-Seat configuration with 3710 x 1380 x 1986 mm, 700kg load capacity and 28km/h max speed.
D Series

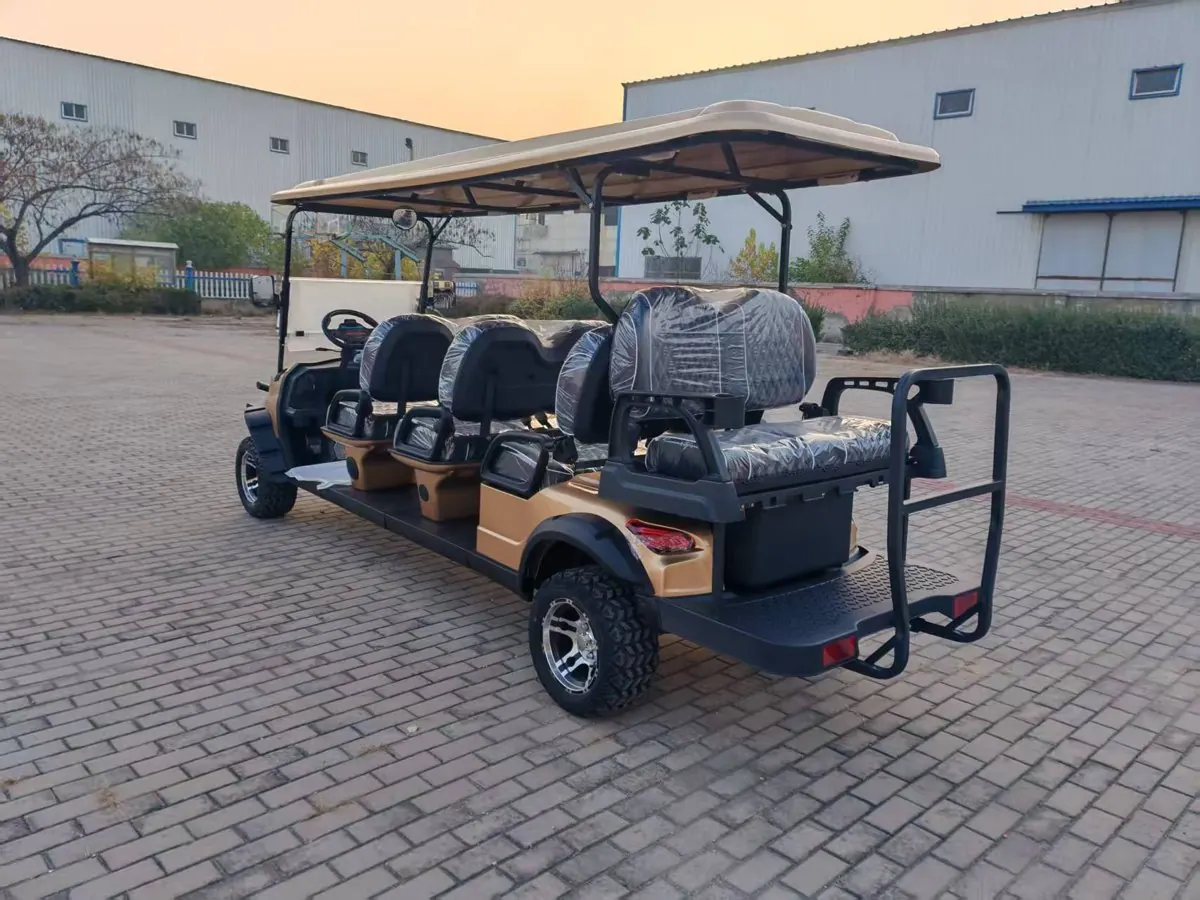

3+1 Row 8-Seat configuration with 4460 x 1380 x 1986 mm, 900kg load capacity and 28km/h max speed.

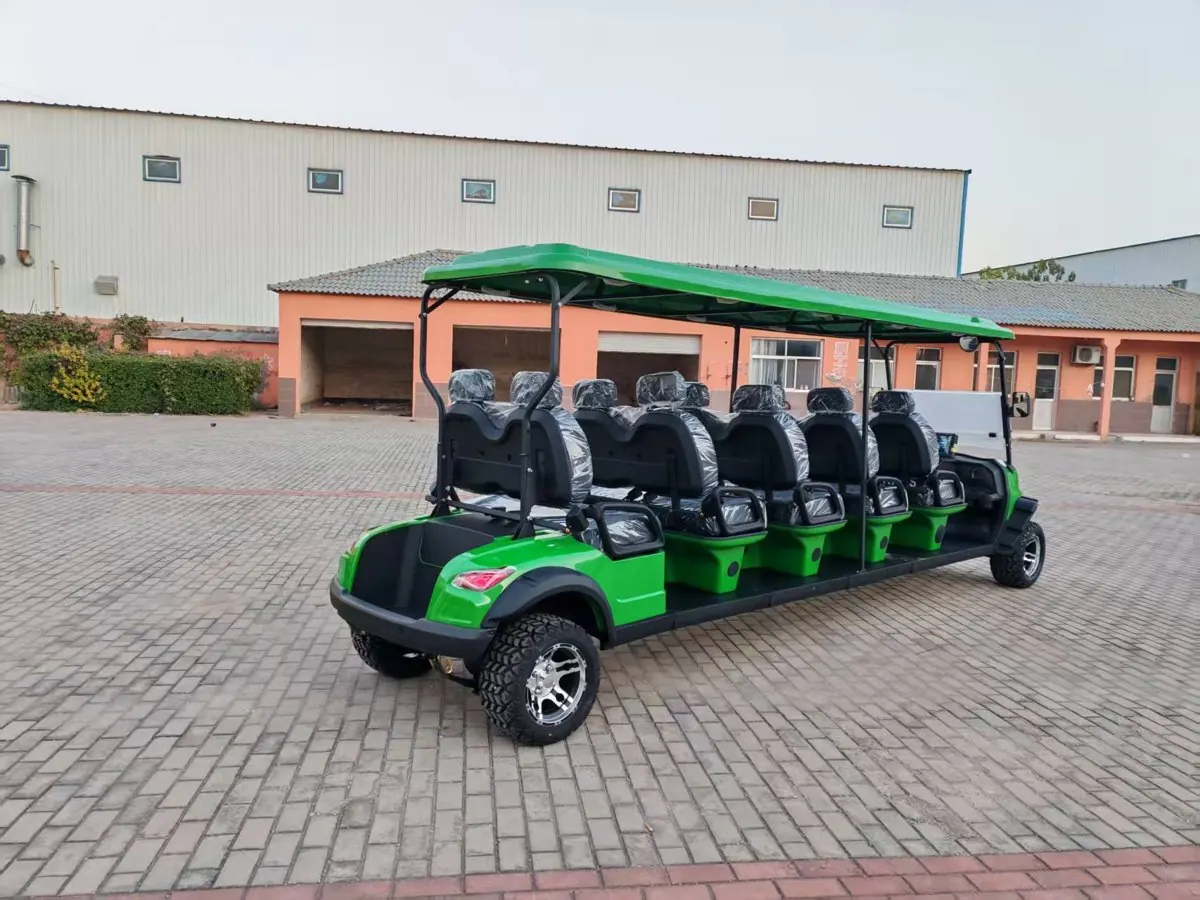

D Series
Five-Row 10-Seat configuration with 5450 x 1380 x 1986 mm, 1000kg load capacity and 28km/h max speed.
D Series

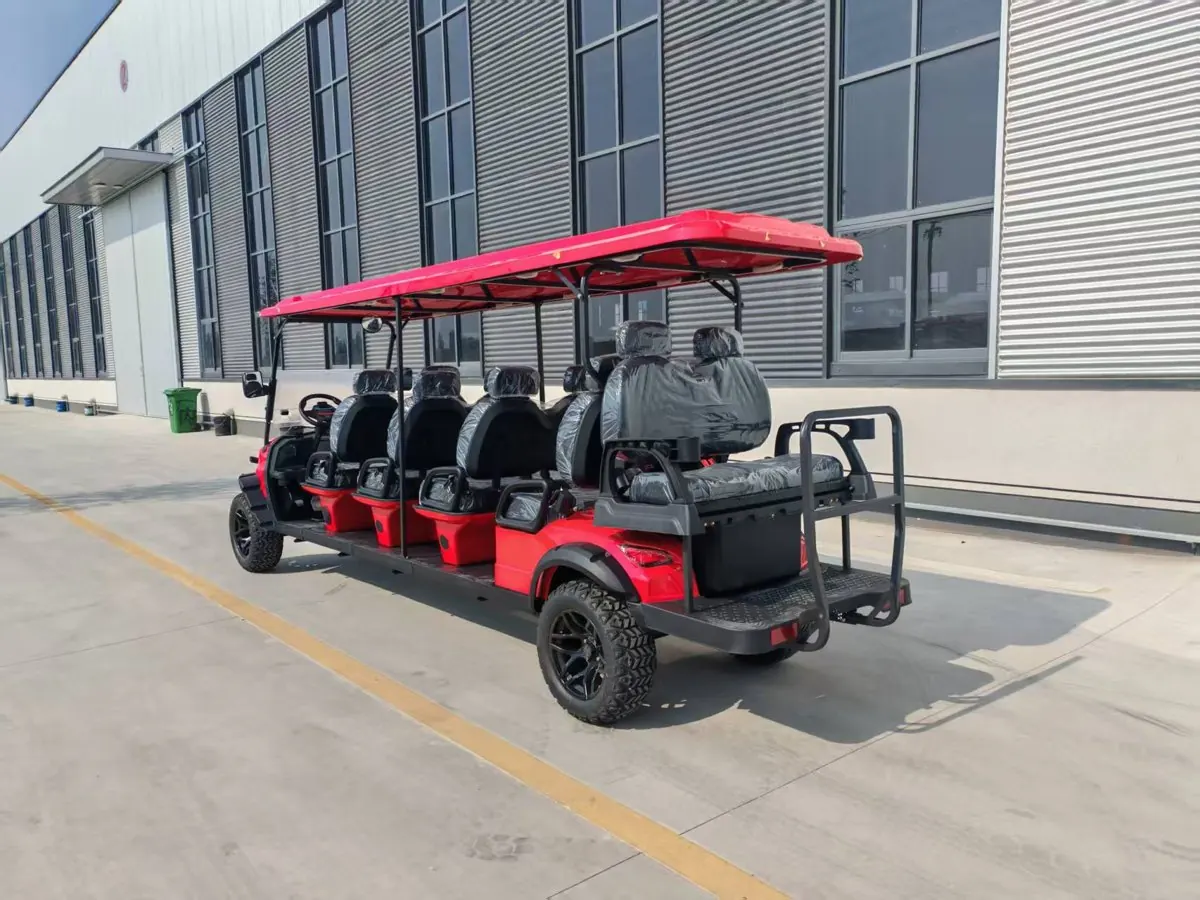

4+1 Row 10-Seat configuration with 5230 x 1380 x 1986 mm, 1000kg load capacity and 28km/h max speed.
E Series
5 configurations | 2-seat, 4-seat, 6-seat | compact resort range
The E Series focuses on 2-seat, 4-seat and 6-seat configurations for compact passenger movement and lower-volume routes.
Best fit: Hotels, private communities, small scenic areas and internal site transport.
E Series

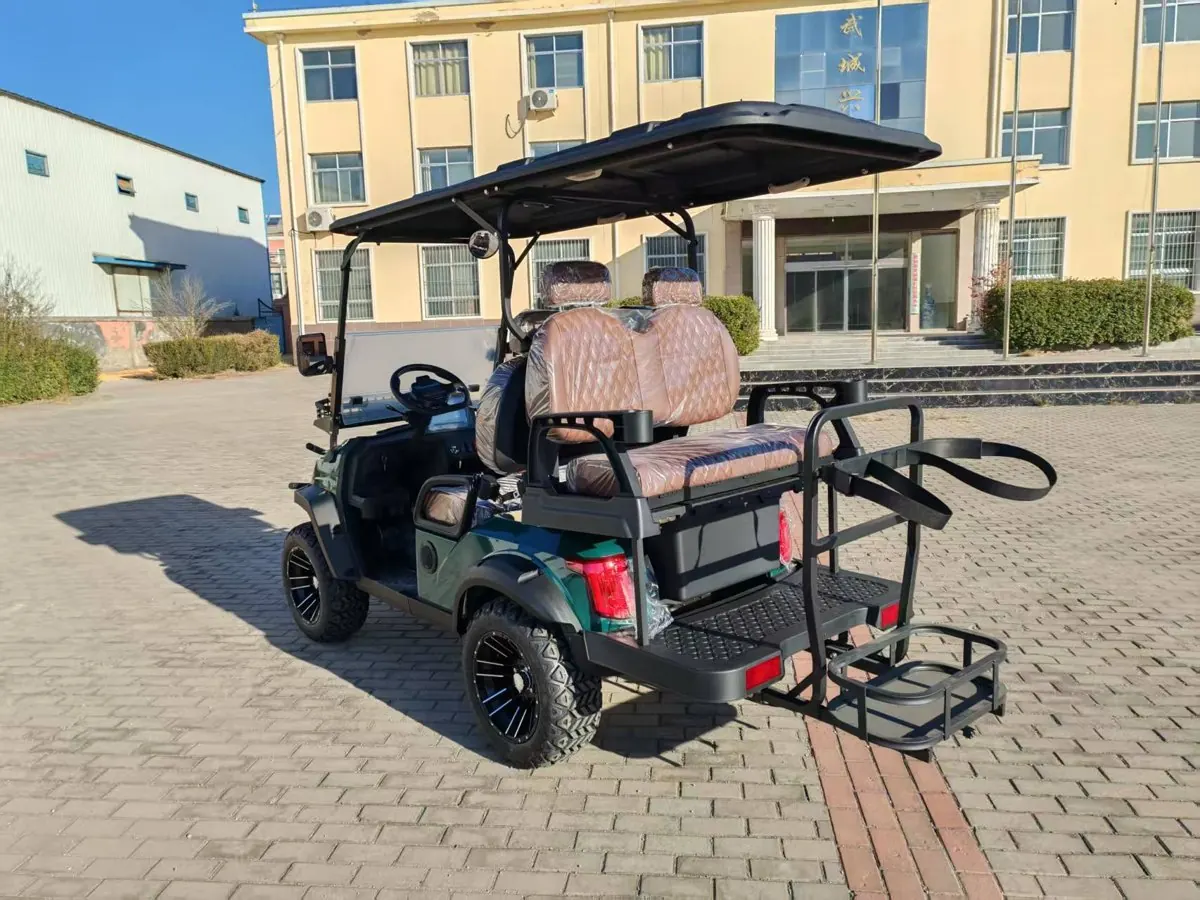

1+1 Row 4-Seat configuration with 2960 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
E Series

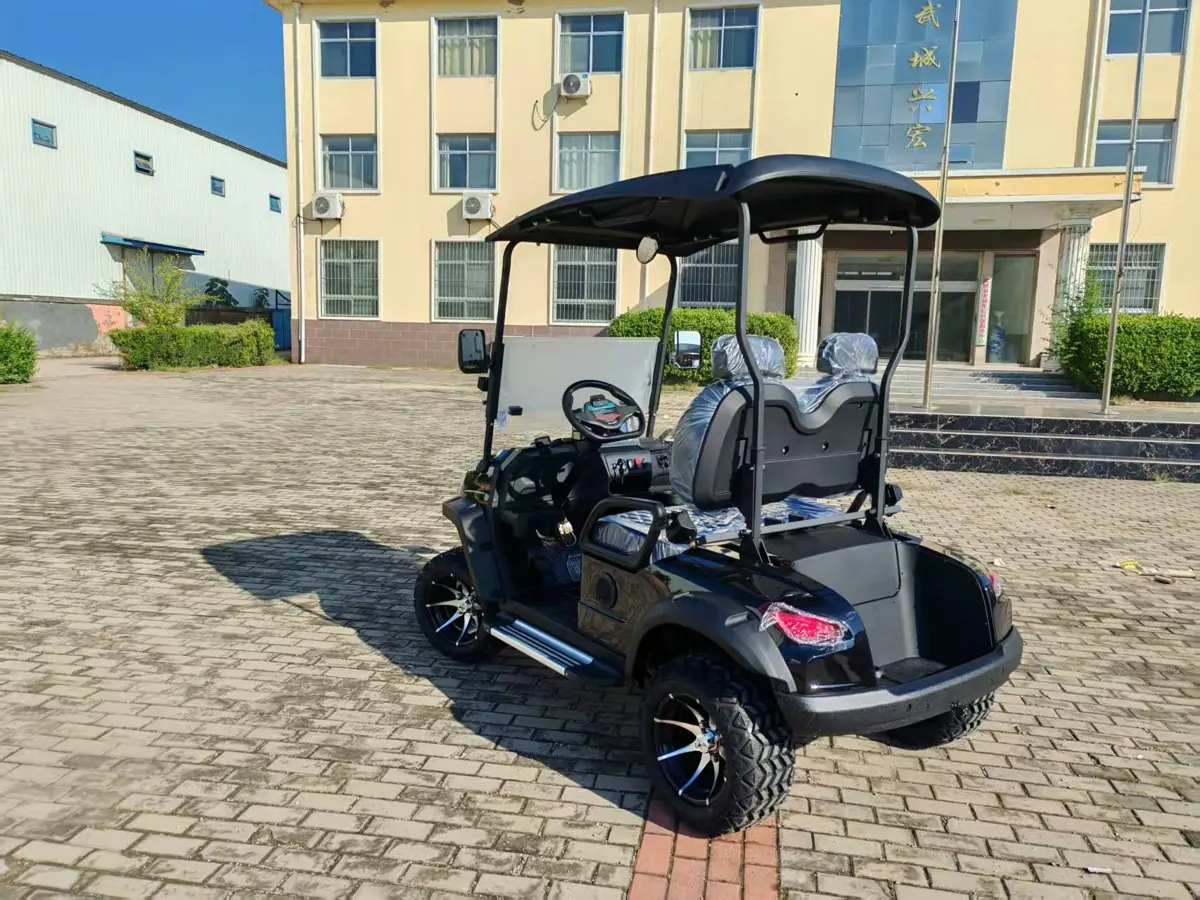

Single-Row 2-Seat configuration with 2460 x 1380 x 1986 mm, 300kg load capacity and 28km/h max speed.
E Series

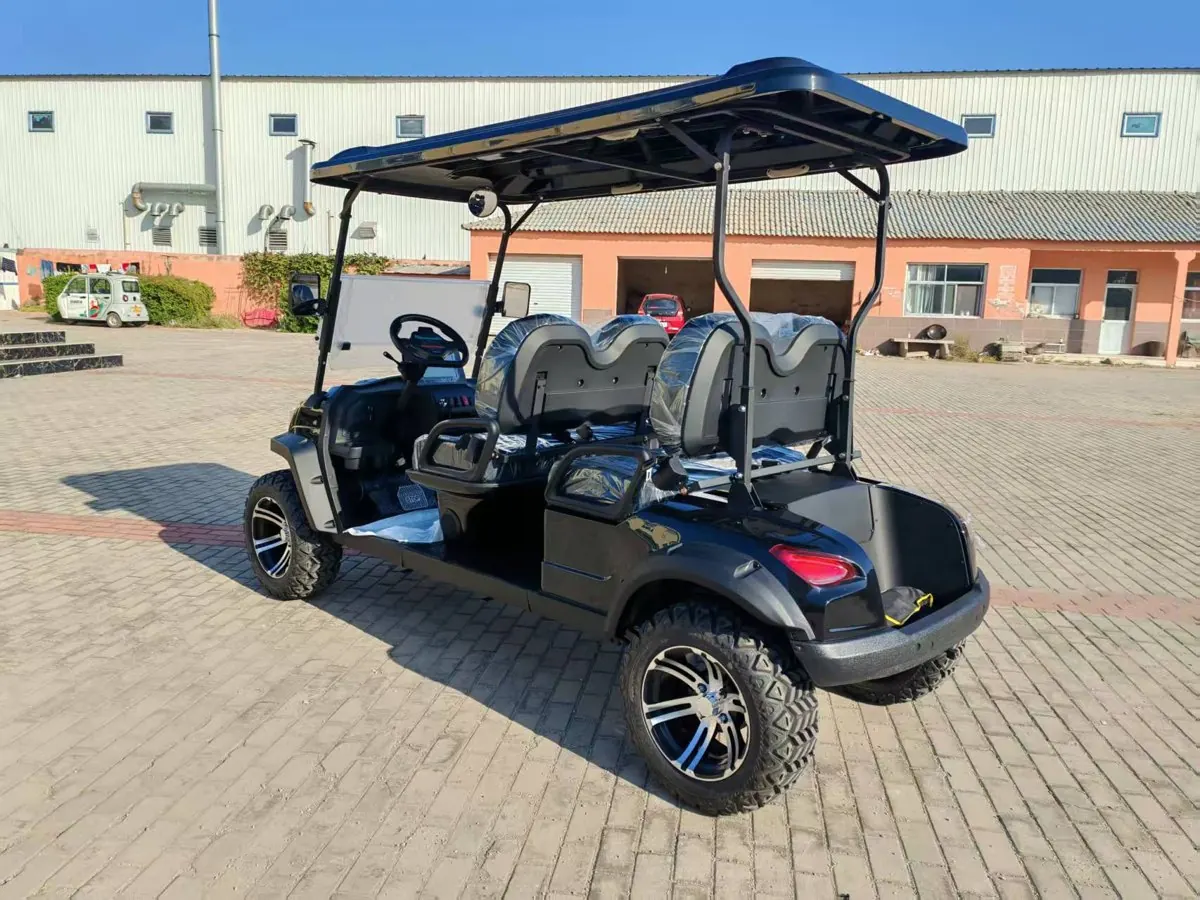

Two-Row 4-Seat configuration with 3210 x 1380 x 1986 mm, 500kg load capacity and 28km/h max speed.
E Series

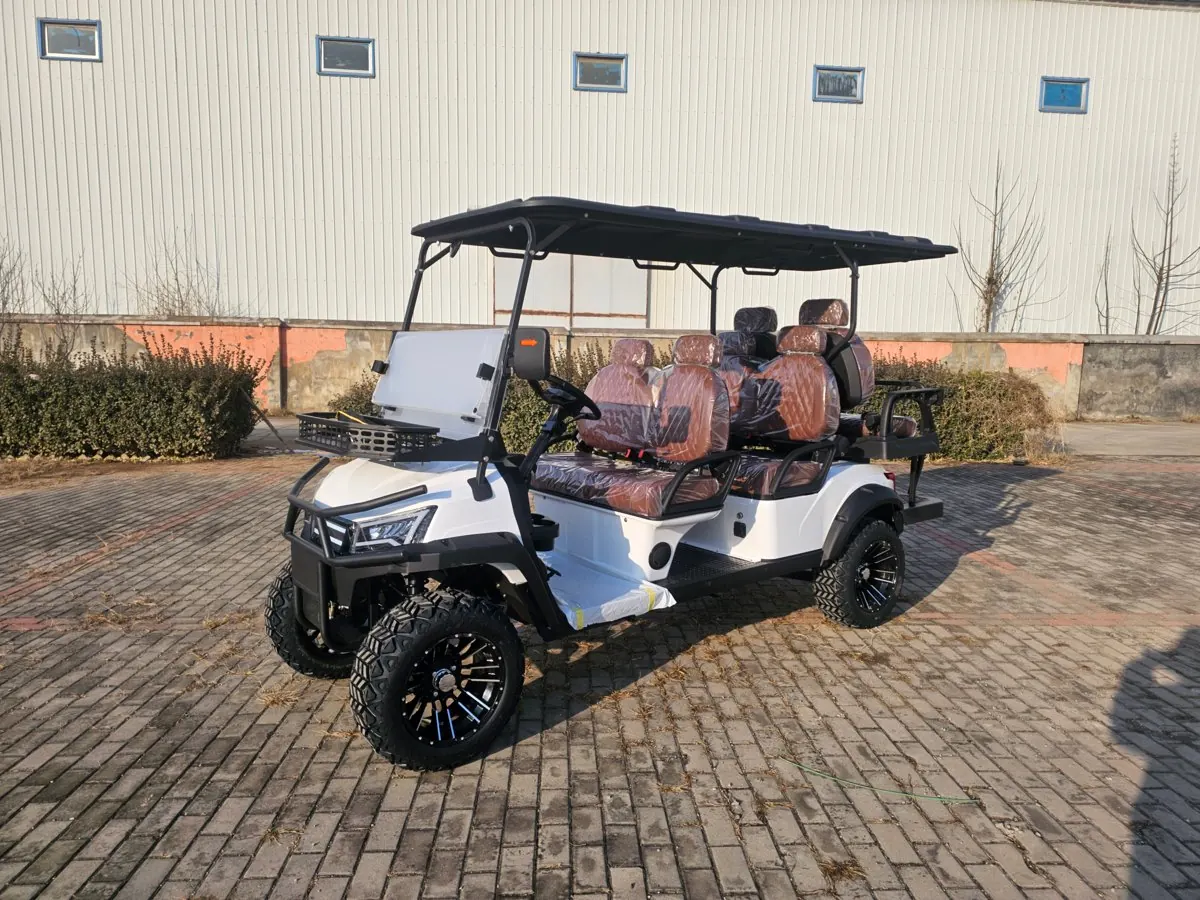

2+1 Row 6-Seat configuration with 3710 x 1380 x 1986 mm, 700kg load capacity and 28km/h max speed.
E Series

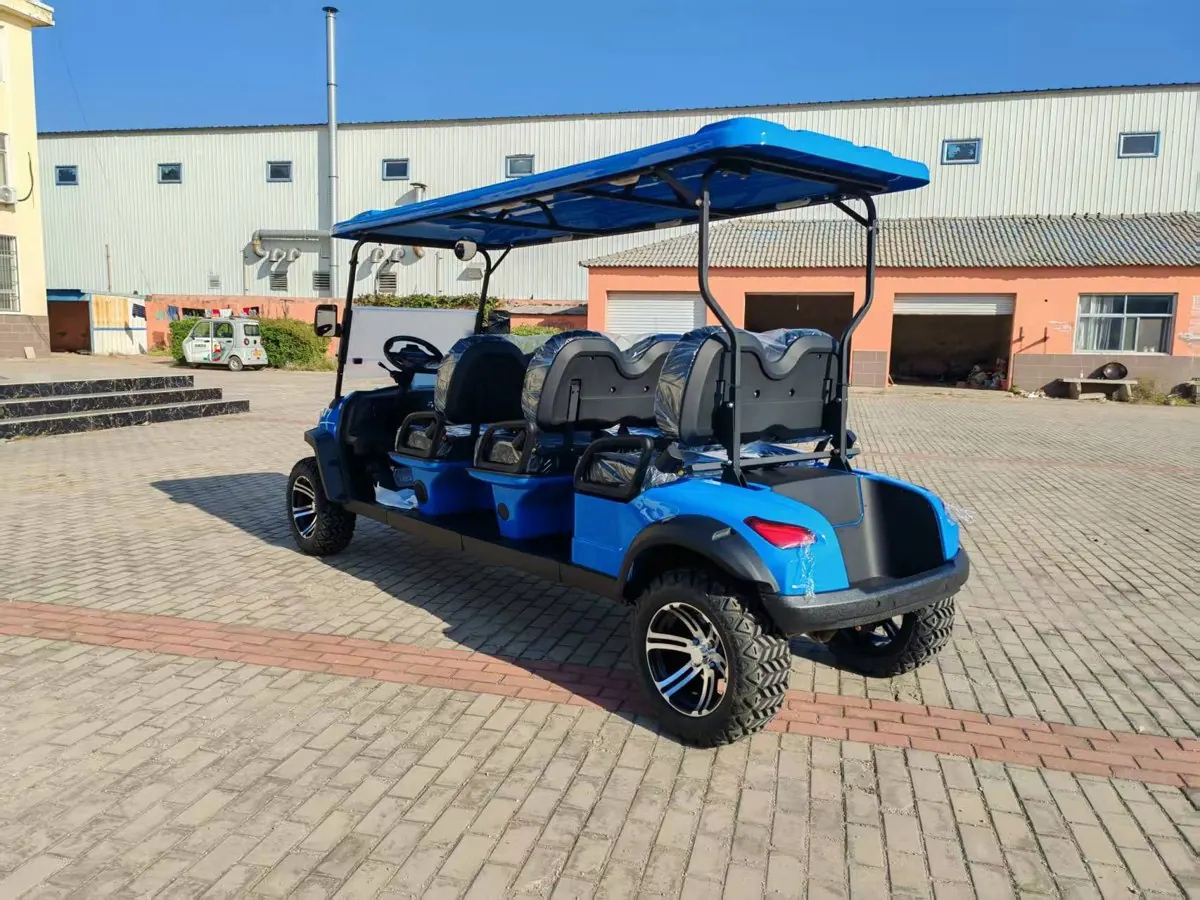

Three-Row 6-Seat configuration with 3960 x 1380 x 1986 mm, 700kg load capacity and 28km/h max speed.
F Series
2 configurations | 4-seat, 6-seat | 2050 mm roof profile
The F Series uses a taller 2050 mm profile with 4-seat and 6-seat layouts for buyers who want a different body stance.
Best fit: Showroom differentiation and route fleets that need a taller visual presence.
F Series

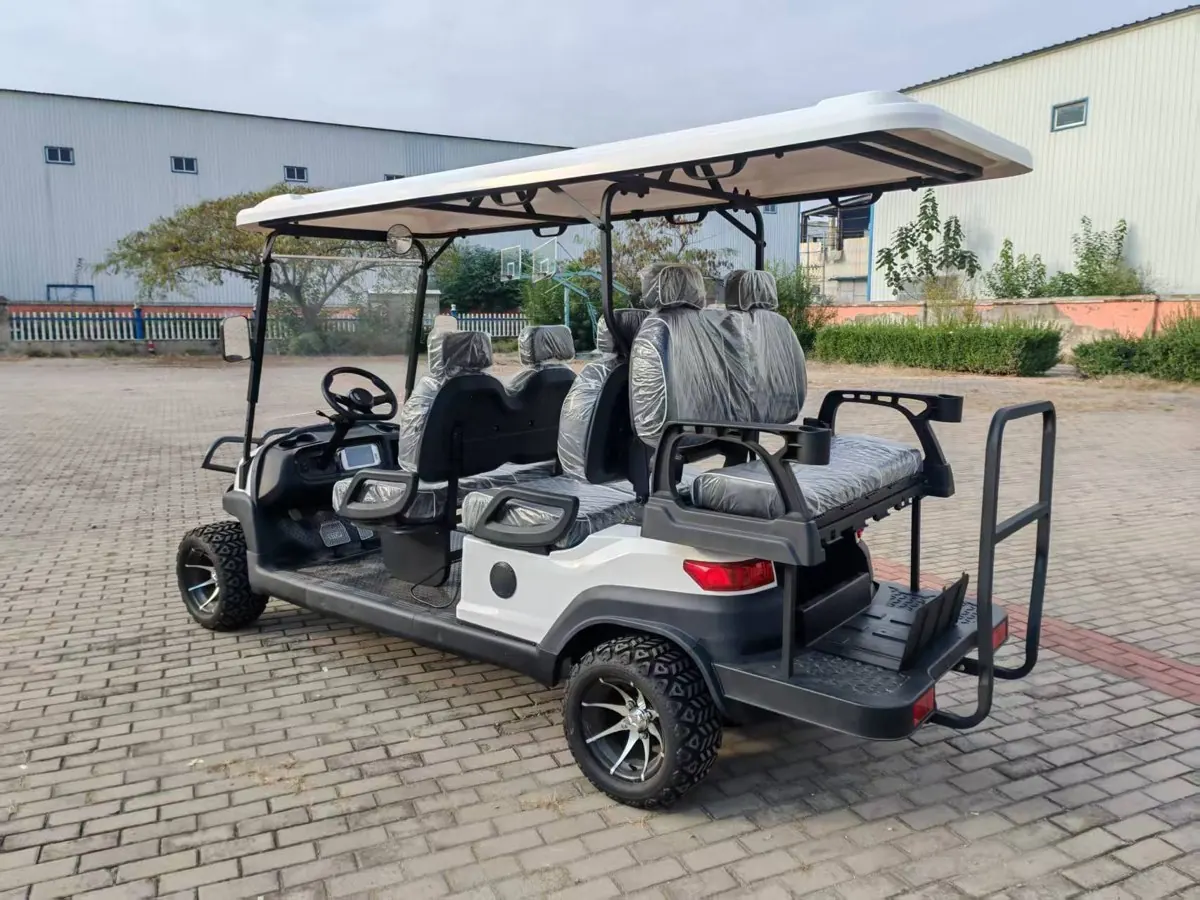

2+1 Row 6-Seat configuration with 3710 x 1200 x 2050 mm, 700kg load capacity and 28km/h max speed.
F Series

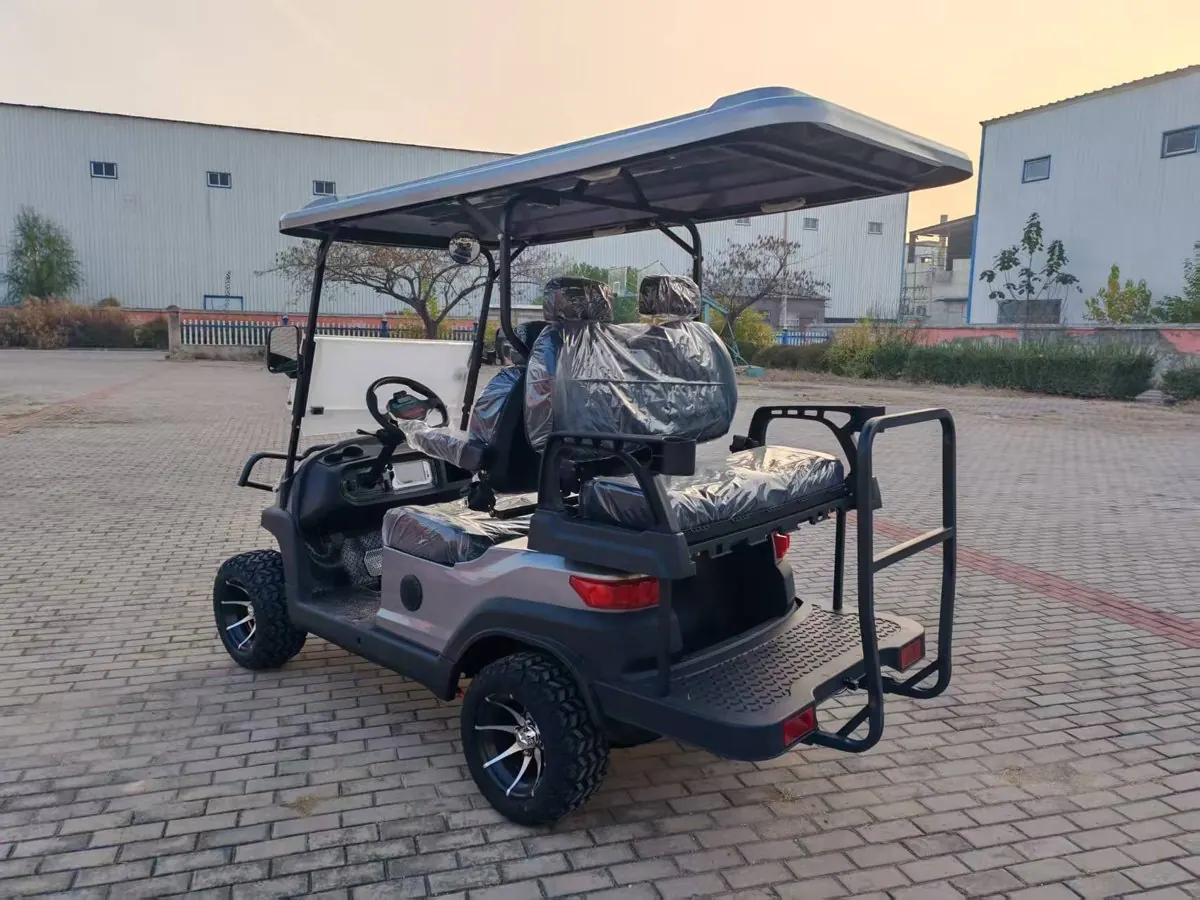

1+1 Row 4-Seat configuration with 3050 x 1200 x 2050 mm, 500kg load capacity and 28km/h max speed.
G Series
2 configurations | 4-seat, 6-seat | 1320 mm specialty body
The G Series covers 4-seat and 6-seat layouts on a 1320 mm body width with heavier curb-weight specifications.
Best fit: Resort and park operators comparing specialty body styles.

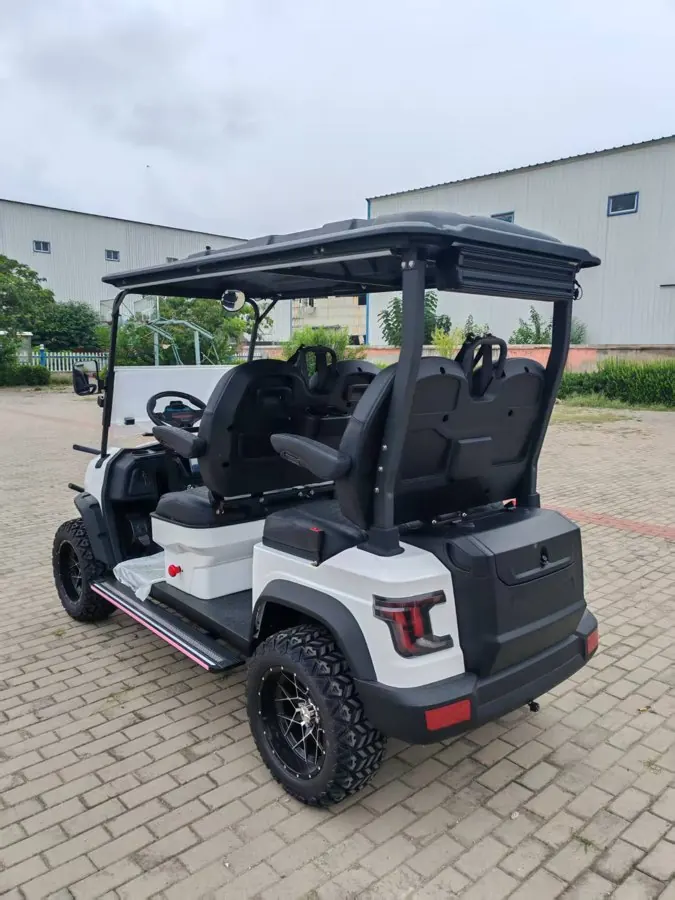

G Series
Two-Row 4-Seat configuration with 3030 x 1320 x 2050 mm, 500kg load capacity and 28km/h max speed.
G Series

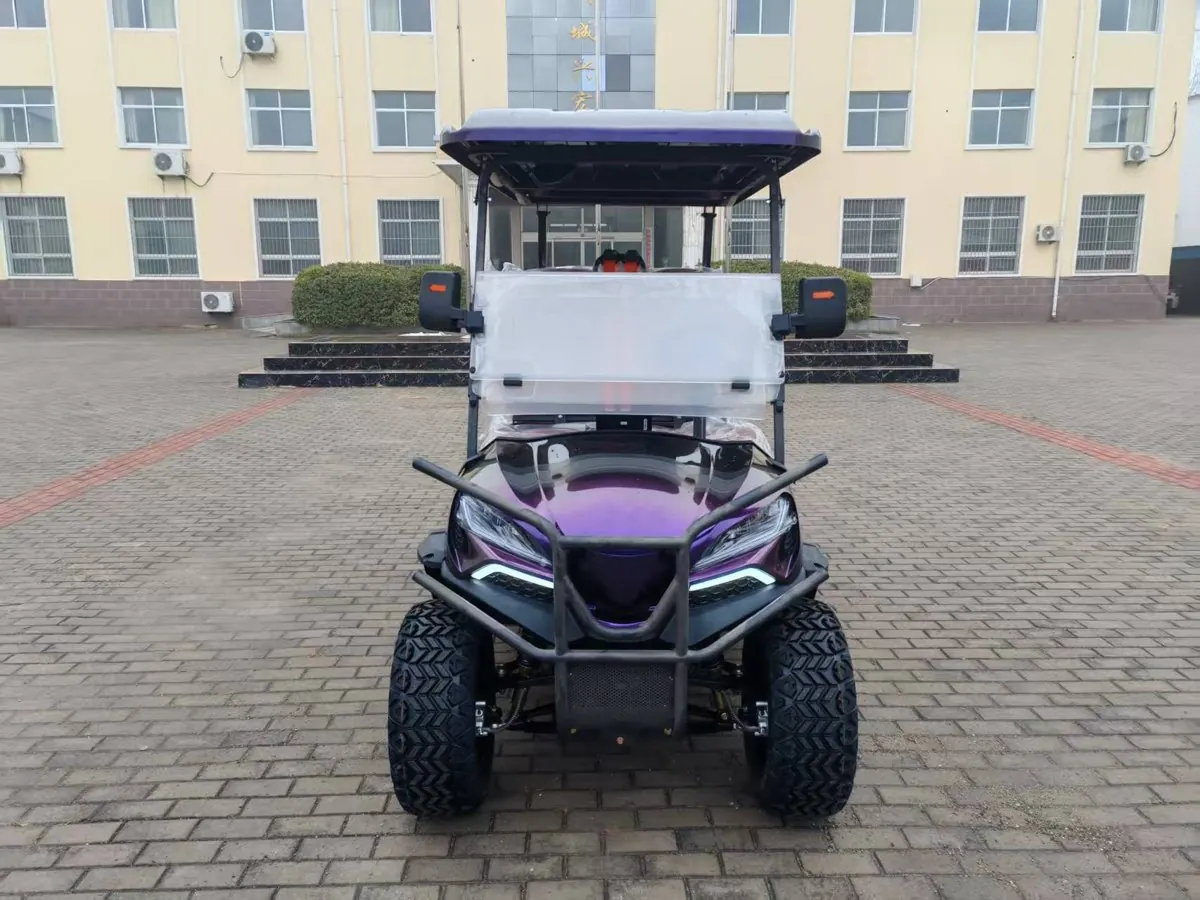

Three-Row 6-Seat configuration with 3780 x 1320 x 2050 mm, 700kg load capacity and 28km/h max speed.
BS Series
1 configurations | 4-seat | 4-seat specialty
The BS Series is a 4-seat specialty configuration for buyers comparing alternative styling within the golf cart line.
Best fit: Small passenger fleets and dealer showroom options.

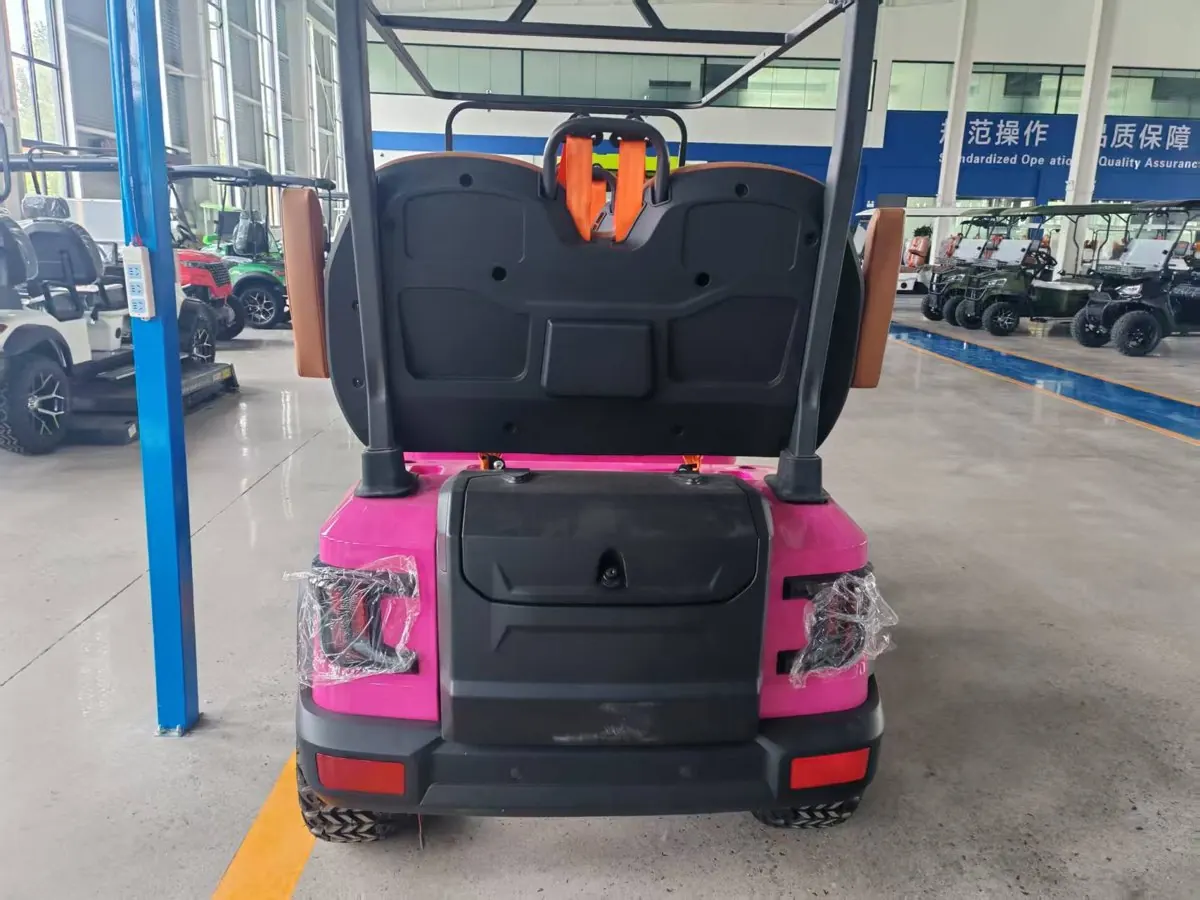

BS Series
Two-Row 4-Seat configuration with 3030 x 1320 x 2050 mm, 500kg load capacity and 28km/h max speed.
BLX Series
1 configurations | 4-seat | 4-seat specialty
The BLX Series gives another 4-seat configuration with a 3210 mm length and 1320 mm width.
Best fit: Dealers building a broader 4-seat product offer.

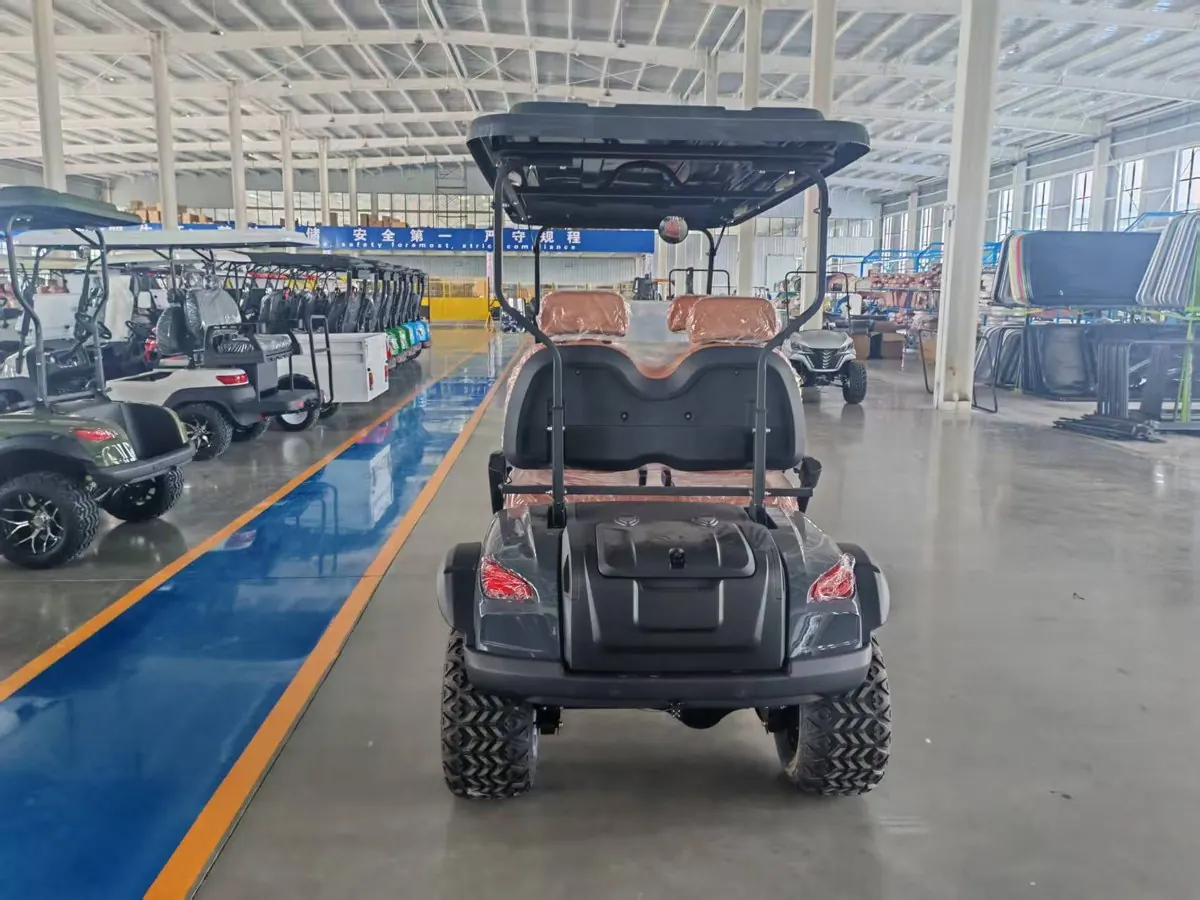

BLX Series
Two-Row 4-Seat configuration with 3210 x 1320 x 2050 mm, 500kg load capacity and 28km/h max speed.
K5 Series
1 configurations | 6-seat | 6-seat specialty
The K5 Series is a 6-seat specialty model for buyers who need a differentiated medium-capacity sightseeing cart.
Best fit: Medium-capacity route service and sightseeing applications.
K5 Series

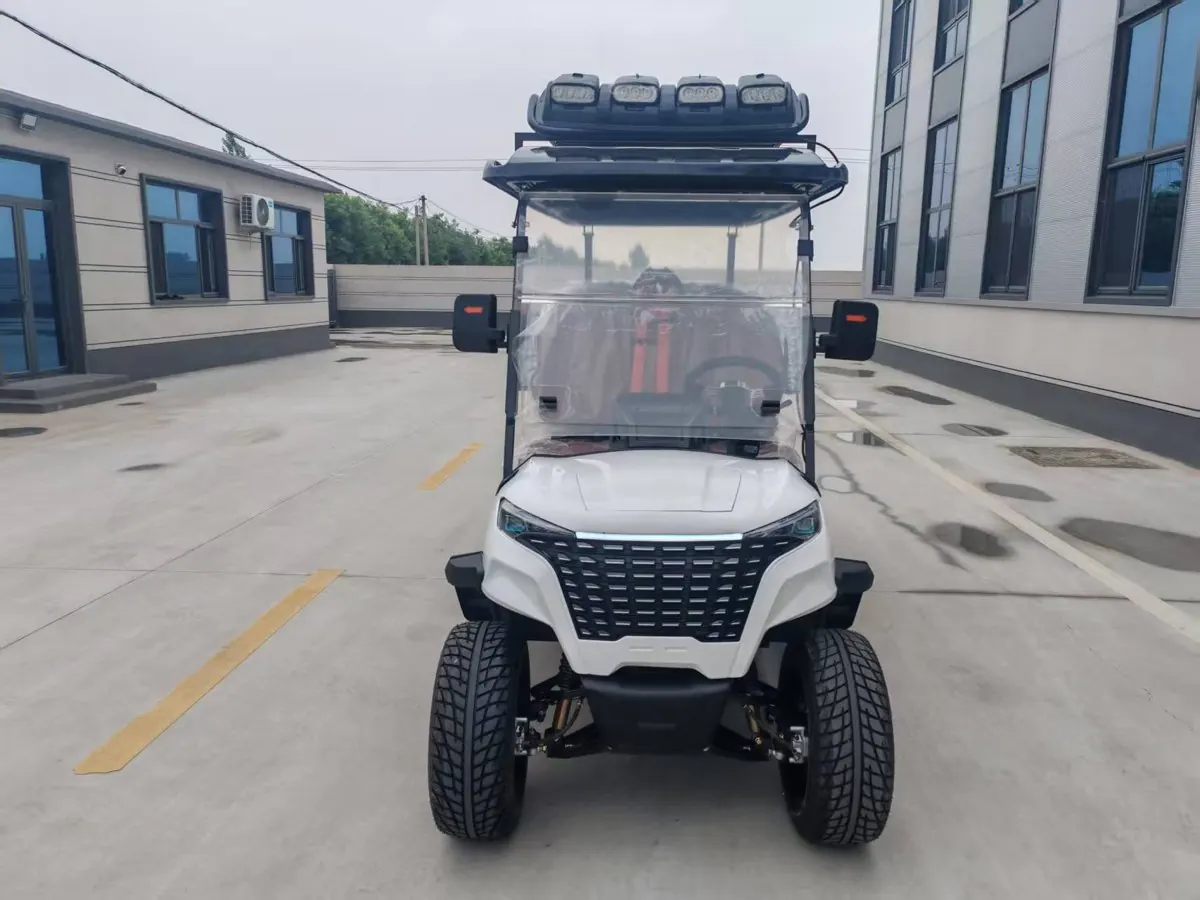

Three-Row 6-Seat configuration with 3780 x 1320 x 2050 mm, 700kg load capacity and 28km/h max speed.
K4 Series
1 configurations | 2-seat | 2-seat specialty
The K4 Series is a compact 2-seat specialty model with a 1380 mm body width and 2.2 m turning radius.
Best fit: Compact site transport, patrol routes and private-property movement.

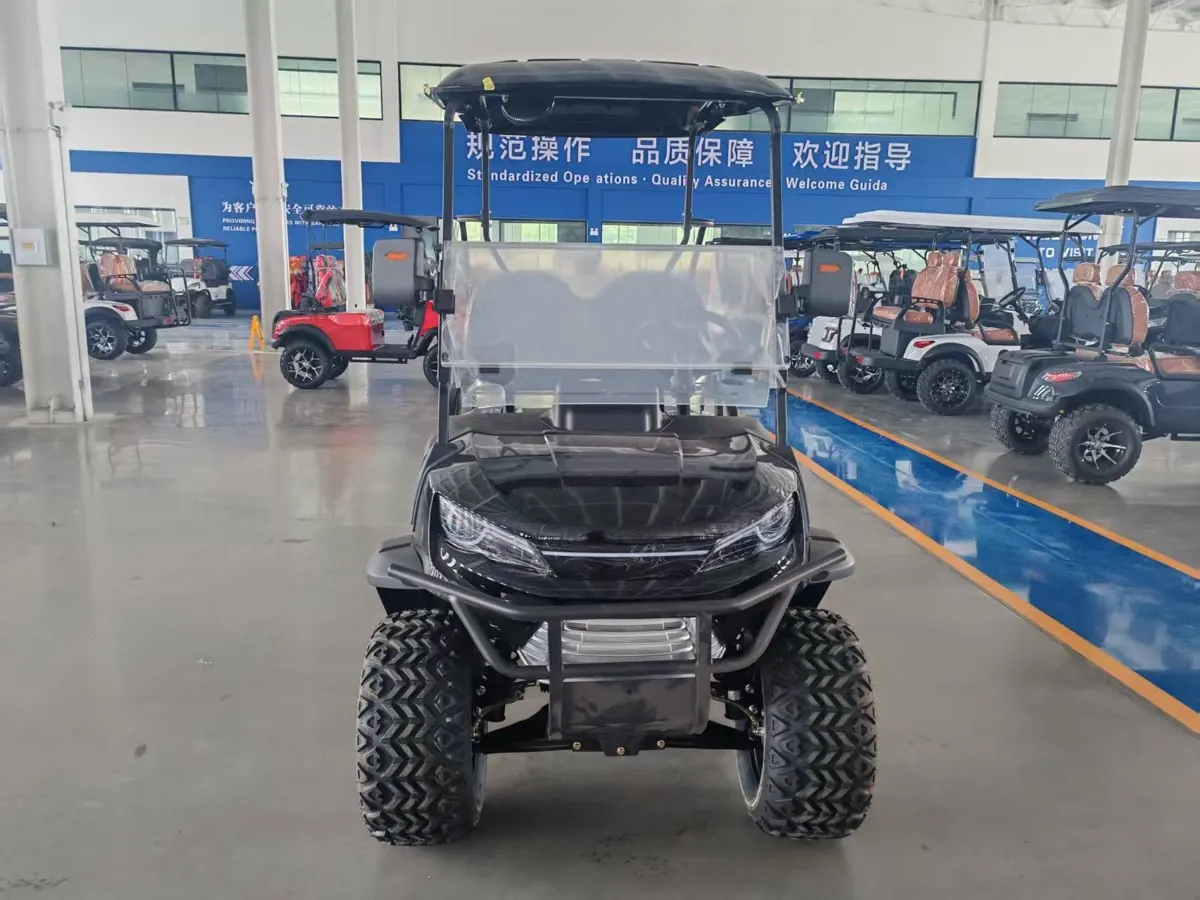

K4 Series
Single-Row 2-Seat configuration with 2460 x 1380 x 1986 mm, 300kg load capacity and 28km/h max speed.
Configuration Matrix
Review series, seat count, vehicle size, load, curb weight, turning radius, battery pack and motor data.
| Configuration | Series | Seats | Vehicle size | Load | Weight | Turn radius | Battery | Motor |
|---|---|---|---|---|---|---|---|---|
| Single-Row 2-Seat Golf Cart | Standard Series | 2 | 2360 x 1200 x 1950 mm | 300kg | 476kg | 2.5m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| 1+1 Row 4-Seat Golf Cart | Standard Series | 4 | 2760 x 1200 x 1950 mm | 500kg | 500kg | 2.5m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| Two-Row 4-Seat Golf Cart | Standard Series | 4 | 3100 x 1200 x 1950 mm | 500kg | 530kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| Three-Row 6-Seat Golf Cart | Standard Series | 6 | 3850 x 1200 x 1950 mm | 700kg | 550kg | 4.9m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| 2+1 Row 6-Seat Golf Cart | Standard Series | 6 | 3500 x 1200 x 1950 mm | 700kg | 550kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| Four-Row 8-Seat Golf Cart | Standard Series | 8 | 4480 x 1200 x 1950 mm | 900kg | 620kg | 6.9m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| 3+1 Row 8-Seat Golf Cart | Standard Series | 8 | 4250 x 1200 x 1950 mm | 900kg | 580kg | 4.9m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| 10-Seat Golf Cart | Standard Series | 10 | 5100 x 1200 x 1950 mm | 1000kg | 660kg | 8.6m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| 4+1 Row 10-Seat Golf Cart | Standard Series | 10 | 4880 x 1200 x 1950 mm | 1000kg | 645kg | 6.9m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series Single-Row 2-Seat Golf Cart | B Series | 2 | 2460 x 1380 x 1986 mm | 300kg | 500kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series Two-Row 4-Seat Golf Cart | B Series | 4 | 3210 x 1380 x 1986 mm | 500kg | 552kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series 1+1 Row 4-Seat Golf Cart | B Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 72V pack, 6 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series Three-Row 6-Seat Golf Cart | B Series | 6 | 3960 x 1380 x 1986 mm | 700kg | 634kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series 2+1 Row 6-Seat Golf Cart | B Series | 6 | 3710 x 1380 x 1986 mm | 700kg | 590kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series 3+1 Row 8-Seat Golf Cart | B Series | 8 | 4460 x 1380 x 1986 mm | 900kg | 672kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series 4+1 Row 10-Seat Golf Cart | B Series | 10 | 5230 x 1380 x 1986 mm | 1000kg | 775kg | 6.9m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| B Series 5+1 Row 12-Seat Golf Cart | B Series | 12 | 5970 x 1380 x 1986 mm | 1100kg | 860kg | 8m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series Single-Row 2-Seat Golf Cart | D Series | 2 | 2460 x 1380 x 1986 mm | 300kg | 500kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series Two-Row 4-Seat Golf Cart | D Series | 4 | 3210 x 1380 x 1986 mm | 500kg | 552kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series 1+1 Row 4-Seat Golf Cart | D Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |

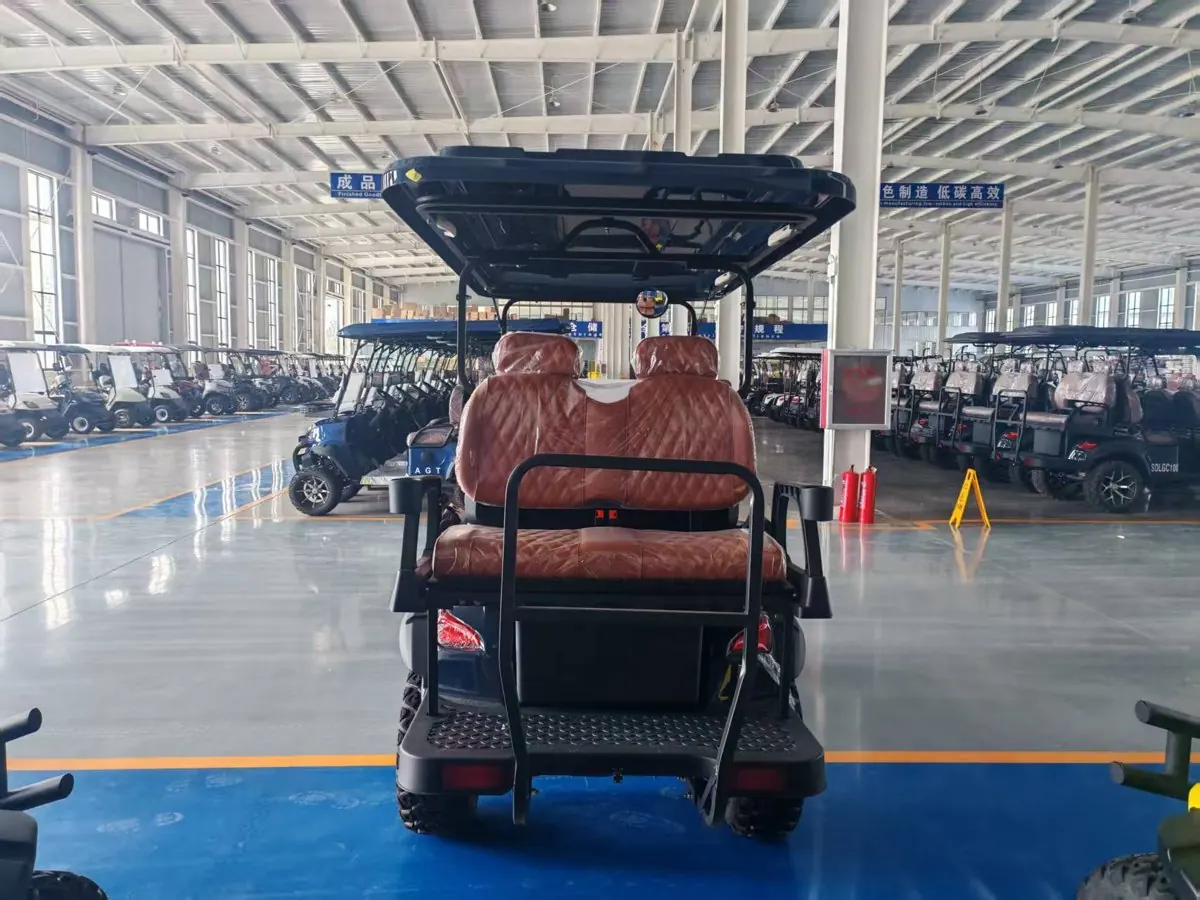

| D Series 1+1 Row 4-Seat Golf Cart - Photo Variant 2 | D Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |

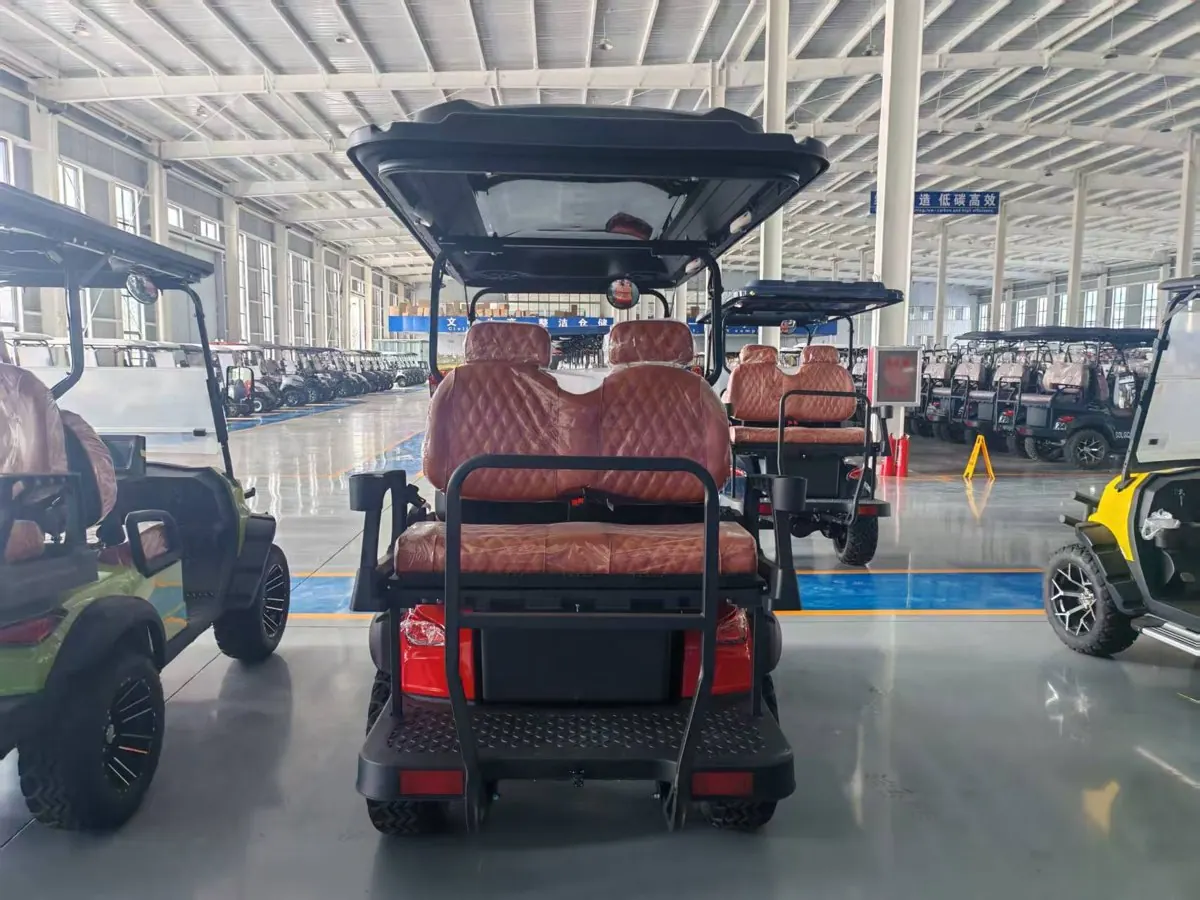

| D Series 1+1 Row 4-Seat Golf Cart - Photo Variant 3 | D Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |

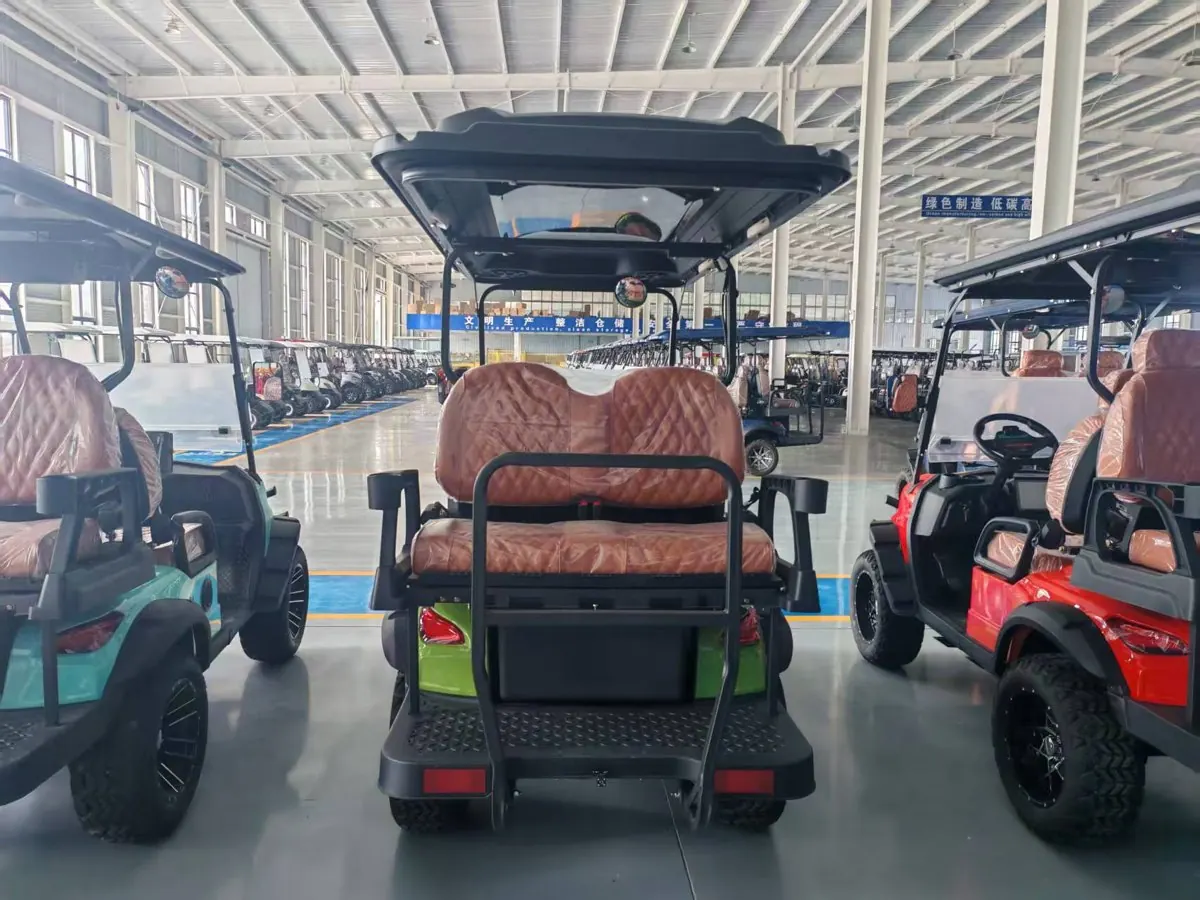

| D Series 1+1 Row 4-Seat Golf Cart - Photo Variant 4 | D Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |

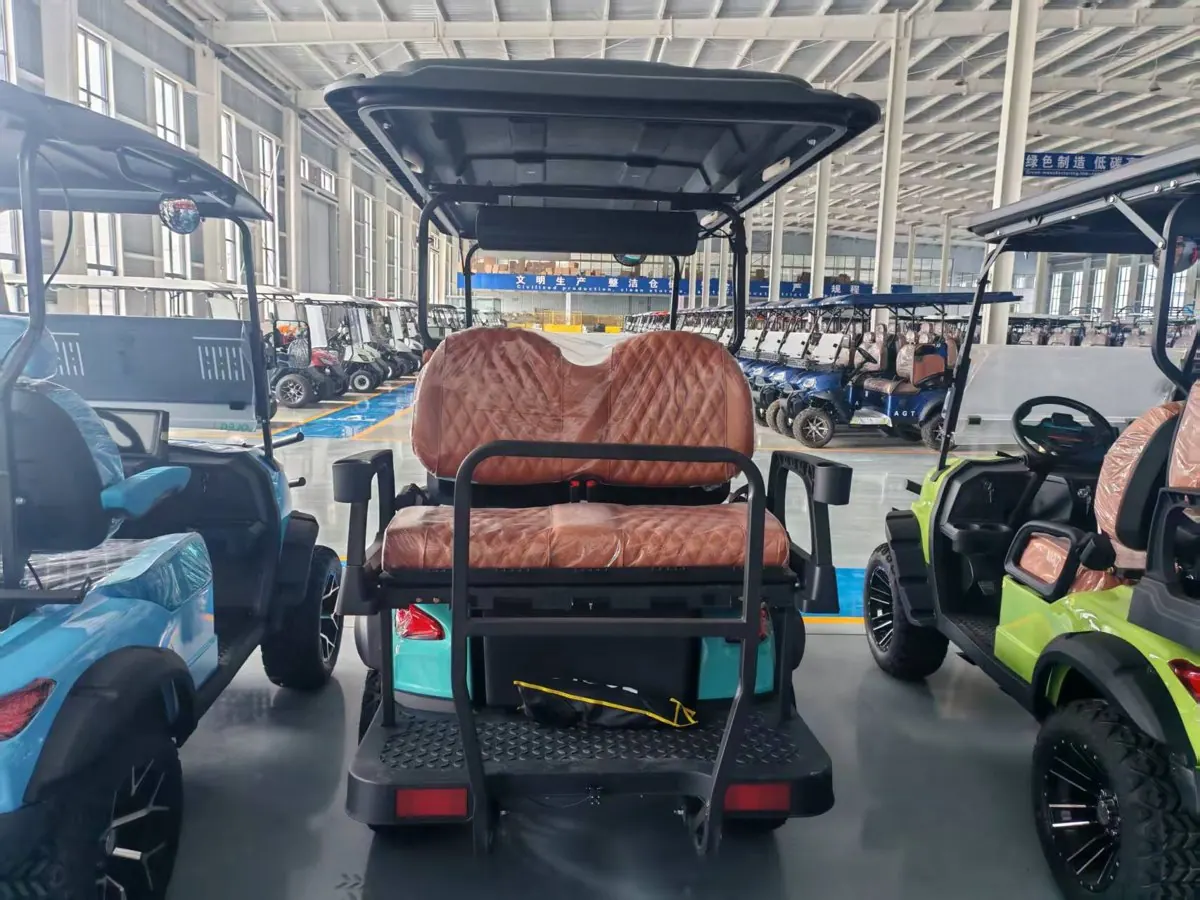

| D Series 1+1 Row 4-Seat Golf Cart - Photo Variant 5 | D Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series Three-Row 6-Seat Golf Cart | D Series | 6 | 3960 x 1380 x 1986 mm | 700kg | 634kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series 2+1 Row 6-Seat Golf Cart | D Series | 6 | 3710 x 1380 x 1986 mm | 700kg | 590kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series 3+1 Row 8-Seat Golf Cart | D Series | 8 | 4460 x 1380 x 1986 mm | 900kg | 672kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series Five-Row 10-Seat Golf Cart | D Series | 10 | 5450 x 1380 x 1986 mm | 1000kg | 800kg | 8m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| D Series 4+1 Row 10-Seat Golf Cart | D Series | 10 | 5230 x 1380 x 1986 mm | 1000kg | 775kg | 6.9m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| E Series 1+1 Row 4-Seat Golf Cart | E Series | 4 | 2960 x 1380 x 1986 mm | 500kg | 552kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| E Series Single-Row 2-Seat Golf Cart | E Series | 2 | 2460 x 1380 x 1986 mm | 300kg | 500kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| E Series Two-Row 4-Seat Golf Cart | E Series | 4 | 3210 x 1380 x 1986 mm | 500kg | 552kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| E Series 2+1 Row 6-Seat Golf Cart | E Series | 6 | 3710 x 1380 x 1986 mm | 700kg | 590kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| E Series Three-Row 6-Seat Golf Cart | E Series | 6 | 3960 x 1380 x 1986 mm | 700kg | 634kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| F Series 2+1 Row 6-Seat Golf Cart | F Series | 6 | 3710 x 1200 x 2050 mm | 700kg | 590kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| F Series 1+1 Row 4-Seat Golf Cart | F Series | 4 | 3050 x 1200 x 2050 mm | 500kg | 552kg | Confirm per order | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| G Series Two-Row 4-Seat Golf Cart | G Series | 4 | 3030 x 1320 x 2050 mm | 500kg | 620kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| G Series Three-Row 6-Seat Golf Cart | G Series | 6 | 3780 x 1320 x 2050 mm | 700kg | 720kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| BS Series Two-Row 4-Seat Golf Cart | BS Series | 4 | 3030 x 1320 x 2050 mm | 500kg | 620kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| BLX Series Two-Row 4-Seat Golf Cart | BLX Series | 4 | 3210 x 1320 x 2050 mm | 500kg | 552kg | 3.7m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| K5 Series Three-Row 6-Seat Golf Cart | K5 Series | 6 | 3780 x 1320 x 2050 mm | 700kg | 720kg | 5.1m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
| K4 Series Single-Row 2-Seat Golf Cart | K4 Series | 2 | 2460 x 1380 x 1986 mm | 300kg | 500kg | 2.2m | 60V pack, 5 pcs 12V 100Ah gel battery | 3.5 kW AC motor |
Figures are taken from factory specification sheets. Final quotation can confirm color, battery brand, local compliance needs and optional accessories.
Shared Systems
Most configurations share the same buyer-relevant platform details, with series-specific details shown in the model cards and matrix above.
Next Step
For distributor orders, we can quote by series, seating layout, quantity, battery preference, color and local import requirements.
